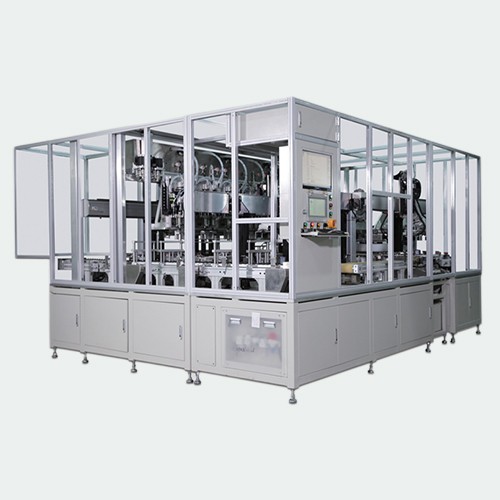

Electrolyte Refilling Machine

This machine automates the electrolyte refiling process for prismatic cell lithium batter-ies.

Production capacity：PPM≥6 or 12

Control mode ：PLC+ MES

Power supply：AC380v/ 3-triphase/ 50Hz

Operating pressure：0.5-0.7Mpa

Actuators type：cylinder, Servo

Vacuum degree：-95~ -99kpa

Production yield：99.8%

Filling time: 1 min (can be adjusted)

Equipment size ：5000mm*3500mm*2200mm

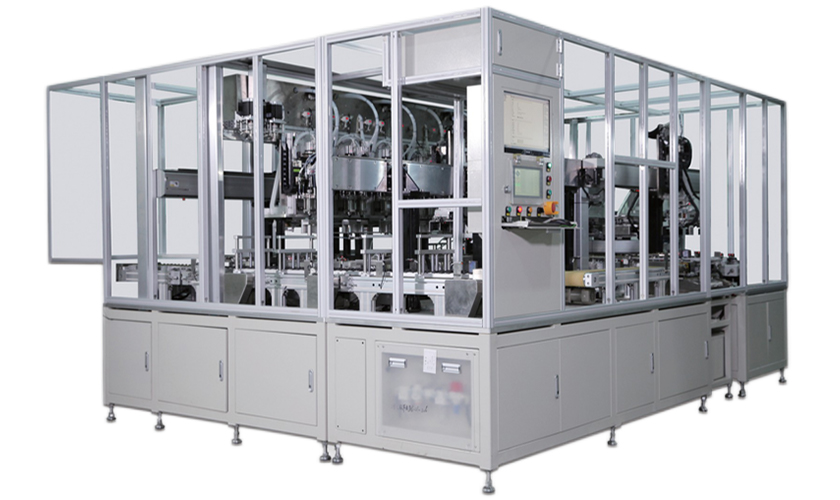

machine overview:

This machine fully automates the electrolyte refilling process. This is needed in order to refill the battery with the electrolyte lost during the formation process. The following operations are carried out automatically by the machine.

Scanning battery barcode

Battery weighing

Degassing

Secondliquidinjection

Weighing after injection

Helium injection

Feeding of the sealing pins from the vibrating bowl

Locating filling opening through CCD scan e Sealing with pins

Automatic detection system verifies that the sealing pin is inserted correctly

Cleaningoftheinjectionhole.

The machine control system supports historical data query and export,key parameters real-time display and issues report tracking.

Data such as the vacuum degree, the weight of the battery, weight after the injection, the helium pressure and the quantity of electrolyte is automatically recorded throughout the filling process and it is linked to the battery's barcode. Based on this data the machine is able to separate defected batteries that are then automatically transferred to a buffer to be later removed.

The equipment and uploaded to the MES system. This allows the information to be exported to the client's information management system.

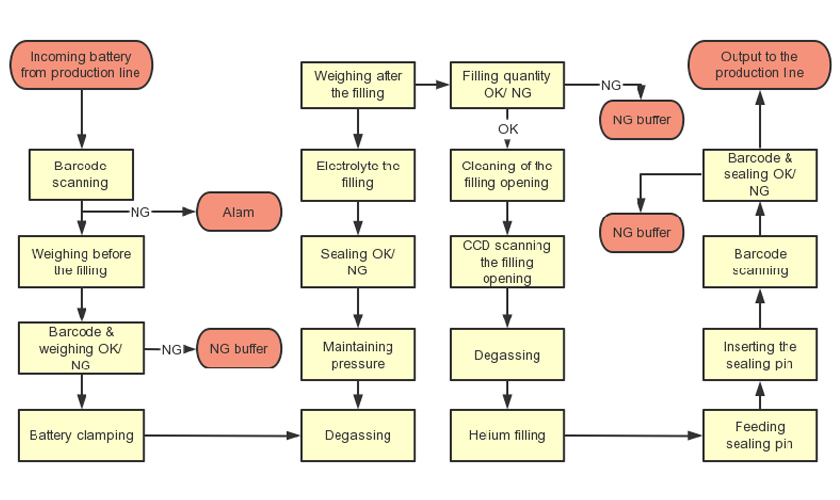

Process flowchart:

Customer Benefts:

Safety: This machine is equipped with multiple emergency buttons, visual and acoustic warning, and safety sensors ielight curtains to comply with China equipment's safety standards.

Robustness: failure rate  2%.

Operability: machine commands are easy to understand and training is provided.

Flexibility: components are quick and easy to replace, the equipment can be adjusted to handle batteries with different dimensions by only replacing few parts, smart design allows to minimize wearing parts and make the maintenance process easier.

Machine output: PPM 6 or 12.
