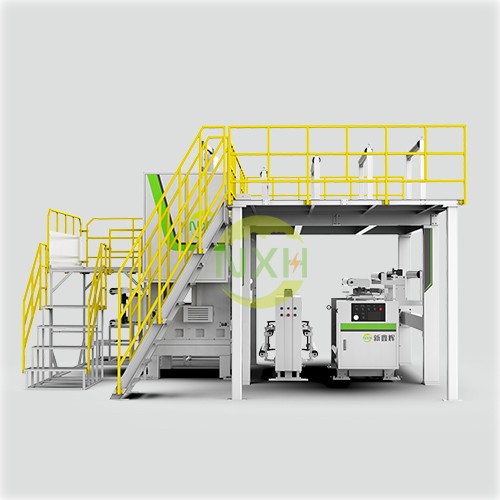

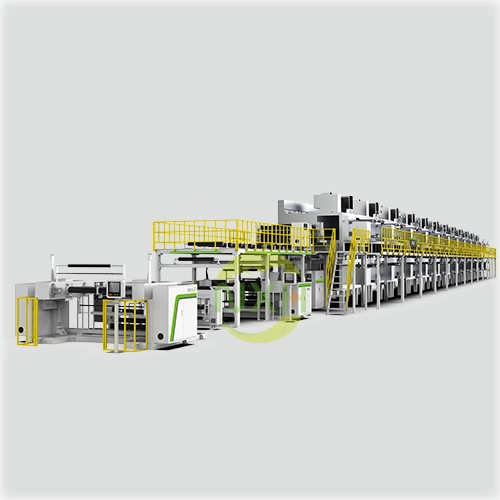

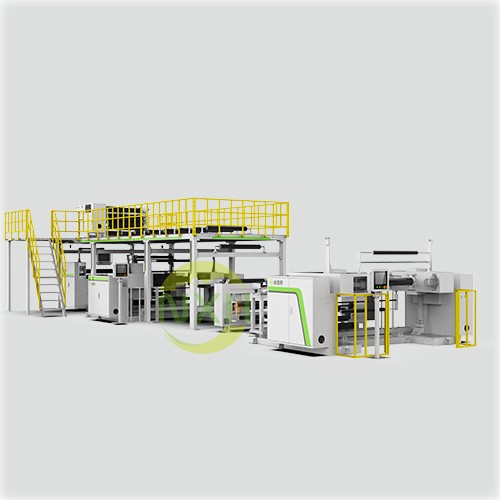

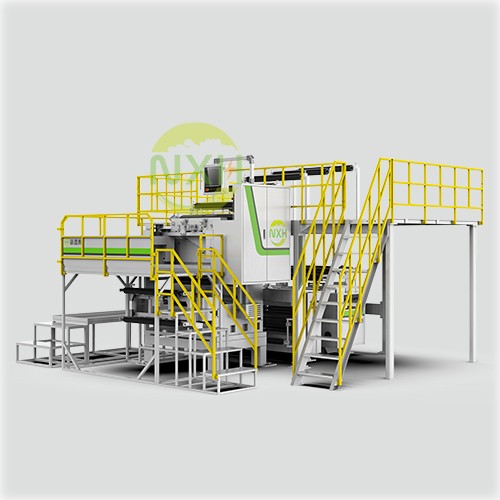

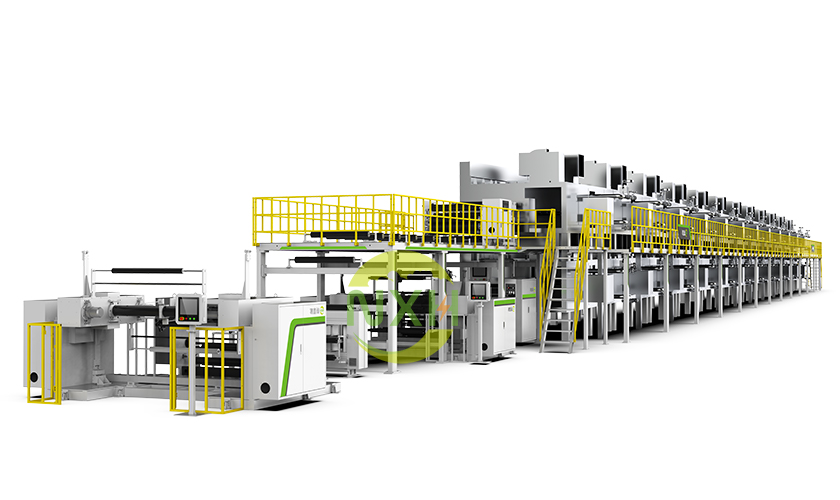

Double-layer EV precision extrusion coating machine

The pole piece base material placed on the unwinding device enters the unwinding tension system after automatic deviation correction, and enters the coating head after adjusting the unwinding tension, and the pole piece is coated according to the setting procedure of the coating system; the wet coating after coating The pole piece enters the lower oven and is dried by hot air; the dried pole piece is corrected by the deviation correction system, and then the tension is adjusted by the tension system, and the traction speed is controlled at the same time to synchronize with the second coating speed, and the pole piece passes through the second coating head. After reverse coating, it enters the upper oven to be dried by hot air, and the dried pole piece is rewound by the rewinding device after being rectified and tension adjusted by the second traction unit.

Product advantages:

1, The front and back sides are coated at the same time, which greatly improves the production efficiency.

2, The feeding system and the control system work closely together to achieve stable and high-precision coating, with a tolerance error of ± 1%.

3, Stable structure, suitable for mass production.

4, Touch screen interface design, easy to operate.

5, Cathode with NMP concentration detection.

6, Online areal density detection system (optional), online CCD visual inspection system (optional), bad section identification system (optional).

7, Optional AGV automatic loading-unloading and winding-unwinding structure.
