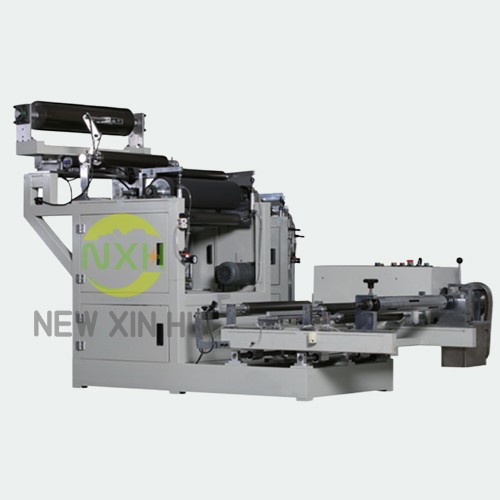

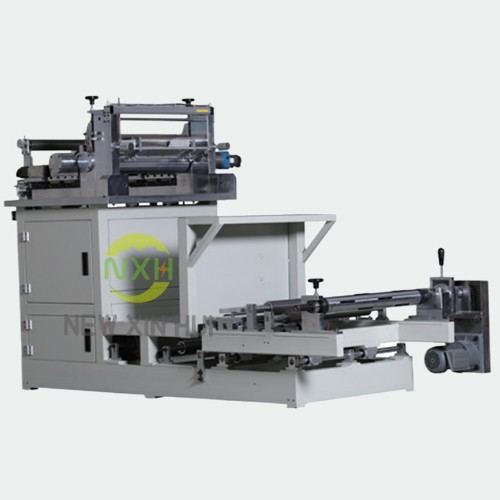

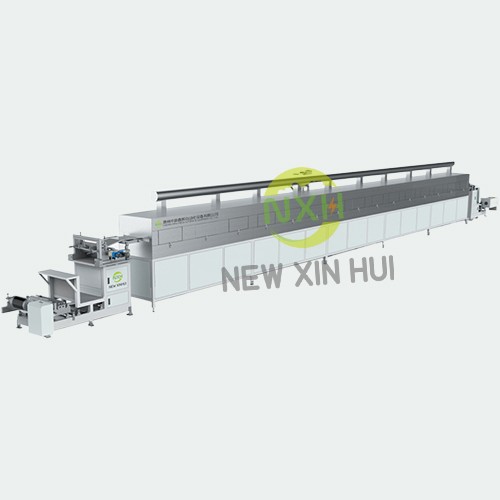

Rack Type Gap Coater

The electrode base material placed on the unwinding device enters the unwinding tension system after automatic deviation correction, and enters the coating mechanism after adjusting the unwinding tension, where coating is carried out according to the set procedure, and the slurry is driven by the rotation of the coating roller. The amount of slurry transfer is adjusted through the comma scraper gap, and the slurry is transferred to the substrate by the rotation of the back roller and the coating roller; the coated wet electrode enters the oven and is dried by hot air; the dried pole piece The tension is adjusted by the tension system, and the winding speed is controlled at the same time to synchronize with the coating speed; the pole piece is automatically corrected by the deviation correction system to keep it at the set position, and the winding operation is performed on the winding device.

Product advantages:

1, The steel roller, rubber roller and scraper have a simple installation structure and are easy to repair and maintain.

2, The control system is simple and convenient to operate, and the touch screen interface is simple and easy to understand.

3, Stable performance and high economy.

New Xinhui Automation was founded in 2005, currently has two production bases in Huizhou and Jiangsu, and can achieve an annual output of 1500 sets of high-end intelligent equipment for lithium batteries.

New Xinhui Automation integrates R&D, design, manufacturing, sales and service of lithium battery automation production equipment, and has created a full line of production equipment and module PACK automatic production line of lithium ion battery series such as cylinder cel l, pouch cell and square cell.

In recent years, New Xinhui Automation has passed ISO9001 quality management system, national high-tech enterprise, Guangdong Province specialized and special new small and medium-sized enterprise, specialized and special new small giant enterprise certification. Up to now, New Xinhui Automation has more than 100 authorized patents and software copyright.

Committed to becoming the world's outstanding lithium-ion intelligent manufacturing equipment supplier, New Xinhui Automation always adhere to the "customer first, win-win cooperation" business philosophy, adhere to technological innovation, constantly improve product quality, improve customer service quality, help customers improve quality, reduce cost and increase efficiency, empower the global new energy intelligent manufacturing.
