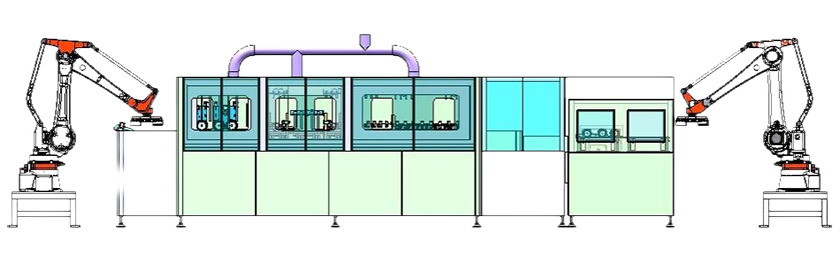

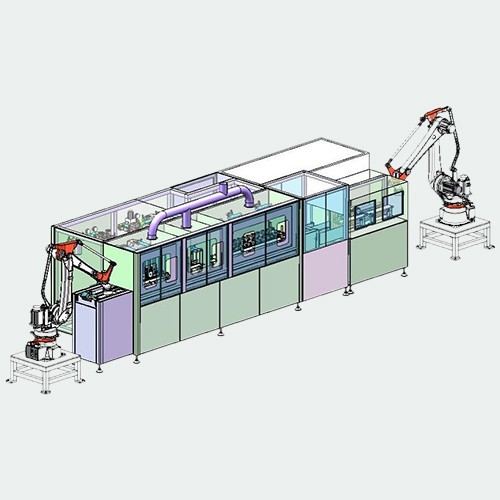

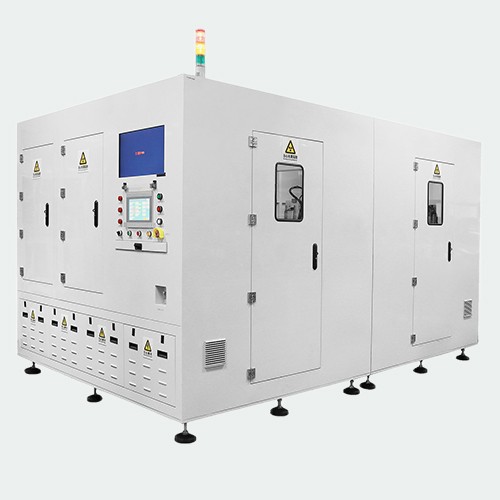

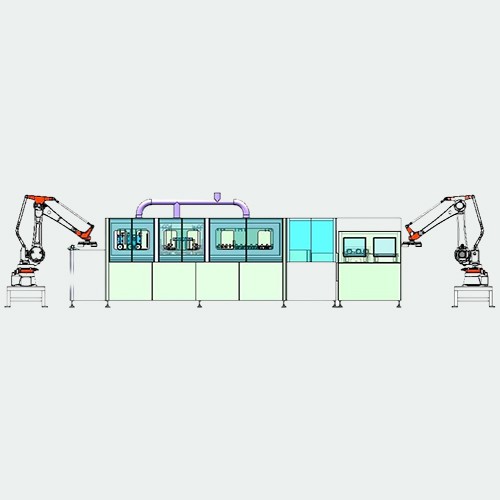

Square Battery Washing Machine

This equipment is specially used for cleaning the square battery after sealing, and effectively removes the residual electrolyte on the outer surface of the battery through high-pressure spraying, brushing, wind cutting, drying and other processes and then air-dries it. The working process is to manually or mechanically put the battery into the jig of the conveying chain at the feeding position. The conveying chain drives the battery into the cleaning chamber for spraying and drying in turn. After reaching the discharge table, the battery is taken out manually or mechanically. Complete the entire cleaning process.

The equipment is a closed structure, the cleaning system is automatically controlled by PLC, and the cleaning parameters and process flow are set by the touch screen that comes with the equipment, which guarantees the advantages of process quality, stable performance, safety, maintainability, and convenient operation.

Equipment Action Process:

Battery to conveyor chain→battery is continuously conveyed to the first scrubbing mechanism via PE rolling chain→brush the battery body and both ends→primary water cutting→high pressure washing→secondary water cutting→transition to the second chain→air drying→discharge.

New Xinhui Automation was founded in 2005, currently has two production bases in Huizhou and Jiangsu, and can achieve an annual output of 1500 sets of high-end intelligent equipment for lithium batteries.

New Xinhui Automation integrates R&D, design, manufacturing, sales and service of lithium battery automation production equipment, and has created a full line of production equipment and module PACK automatic production line of lithium ion battery series such as cylinder cel l, pouch cell and square cell.

In recent years, New Xinhui Automation has passed ISO9001 quality management system, national high-tech enterprise, Guangdong Province specialized and special new small and medium-sized enterprise, specialized and special new small giant enterprise certification. Up to now, New Xinhui Automation has more than 100 authorized patents and software copyright.

Committed to becoming the world's outstanding lithium-ion intelligent manufacturing equipment supplier, New Xinhui Automation always adhere to the "customer first, win-win cooperation" business philosophy, adhere to technological innovation, constantly improve product quality, improve customer service quality, help customers improve quality, reduce cost and increase efficiency, empower the global new energy intelligent manufacturing.
