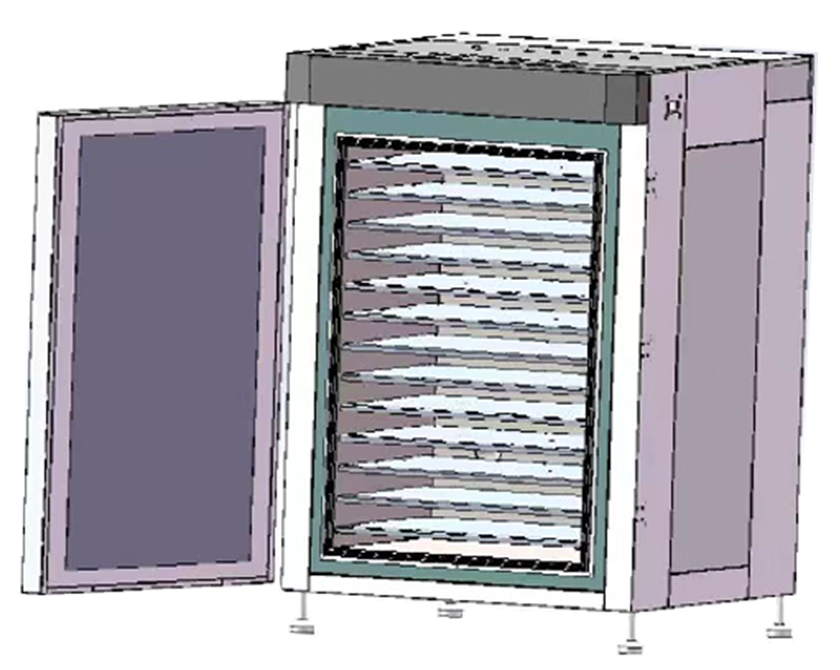

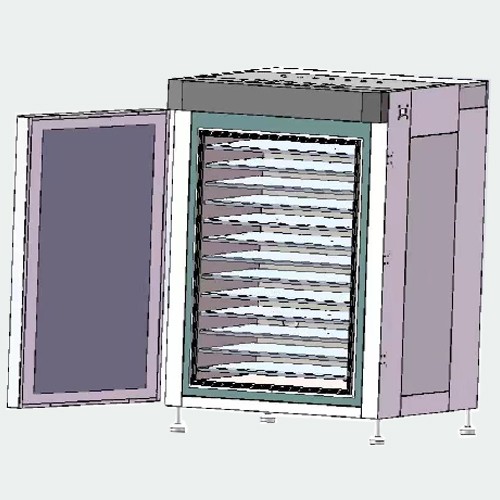

Contact High Vacuum Oven

This product is suitable for the baking process of soft packs and aluminum shell battery pole pieces, with programmable automatic control, 7-inch color large screen for setting process parameters and man-machine dialogue. This product has the characteristics of large volume, double circulation of heat source, ultra-high vacuum degree, intelligent control, etc. It brings the benefits of shortening the process time and improving the production capacity of the whole line for the baking of lithium-ion pole pieces. It is the power lithium-ion battery cell in the new era. Enterprise essential production equipment.

Heating method:

Heating plate contact heating.

Vacuum method:

Vacuum baking: During vacuum baking, the vacuum valve is opened to continue vacuuming, and after the vacuum baking time is up, the vacuum valve is closed;

Nitrogen heating: During the heating period, the air in the working room is replaced, and the nitrogen heating starts;

Vacuum pressure holding: After the cycle is over, select the vacuum pressure holding function, the vacuum valve will open, and when the vacuum reaches -101Kpa, the vacuum valve will close; if the rapid cooling function is selected, when the rapid cooling reaches the set temperature, the vacuum valve will open, and the vacuum will reach -101Kpa After 101Kpa, the vacuum valve is closed.

Nitrogen filling method:

Nitrogen filling implements the "intermittent" filling mode. The internal wind disturbs the nitrogen flow and quickly penetrates into the cavity. When the nitrogen setting value is reached, the valve is closed to prevent nitrogen overshoot.

Cooling method:

Transitional cooling.

Inlay installation:

The color steel plate wall inlay position and sealing position are reserved for the box body.
