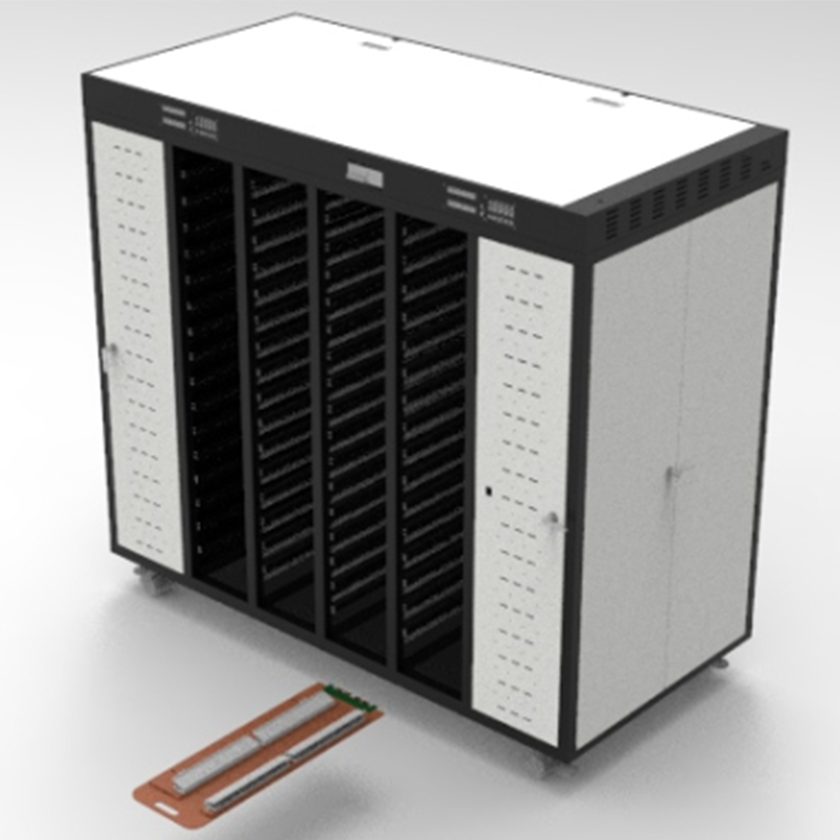

H128D Polymer Lithium Battery Volume Separation and Formation Testing Equipment

Equipment features:

The patented invention technology with independent intellectual property rights is specially designed and manufactured for the separation and formation of pouch square lithium-ion batteries;

Each channel of the equipment has a completely independent constant current stabilized power supply which is independent of each other;

The equipment has the function of data power-off protection function, and can continue to run at the power-off place when the call is made;

The clamps open and close automatically, without manual adjustment of the clamps;

Automatically adjust charging current, discharging current, constant voltage, easy to use;

There are two types of battery trays. The square lithium battery and the electronic cigarette lithium battery can be switched freely;

Communication method: RS-485 ;

Baud rate: 57.6kbit.

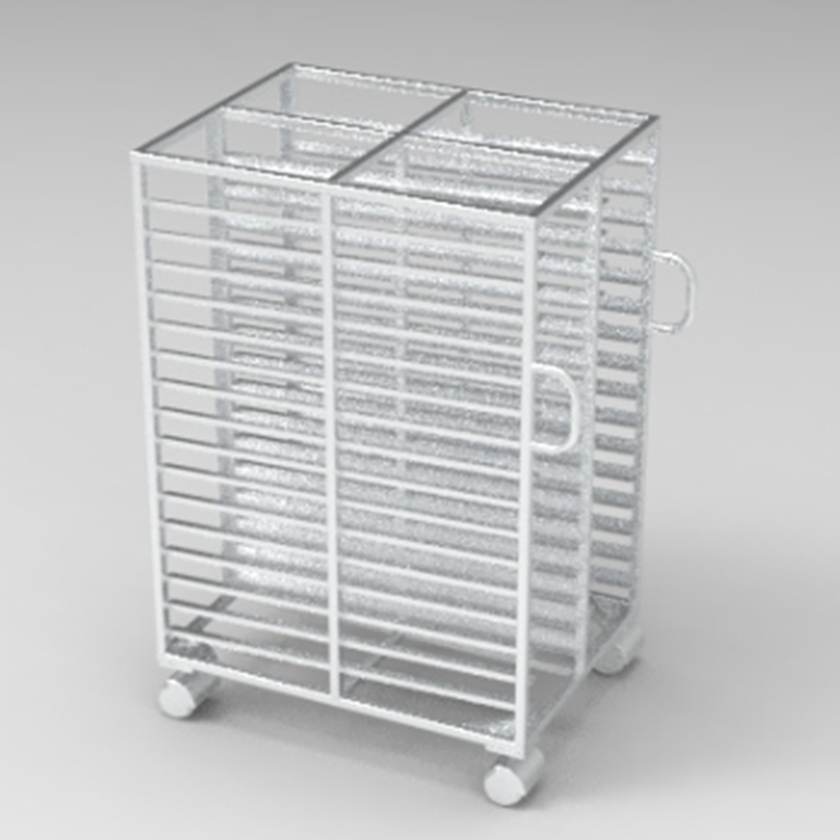

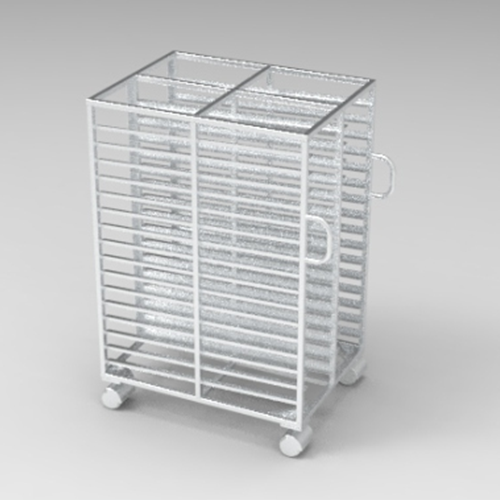

Each device is equipped with two trolleys, the body is simple and light ;

Double armrests and four universal brake wheels make the operation easier and more efficient.

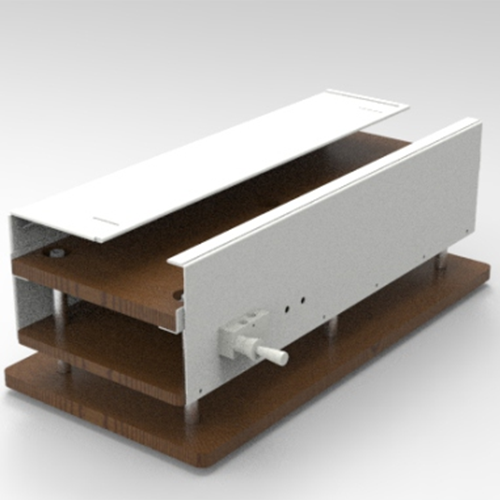

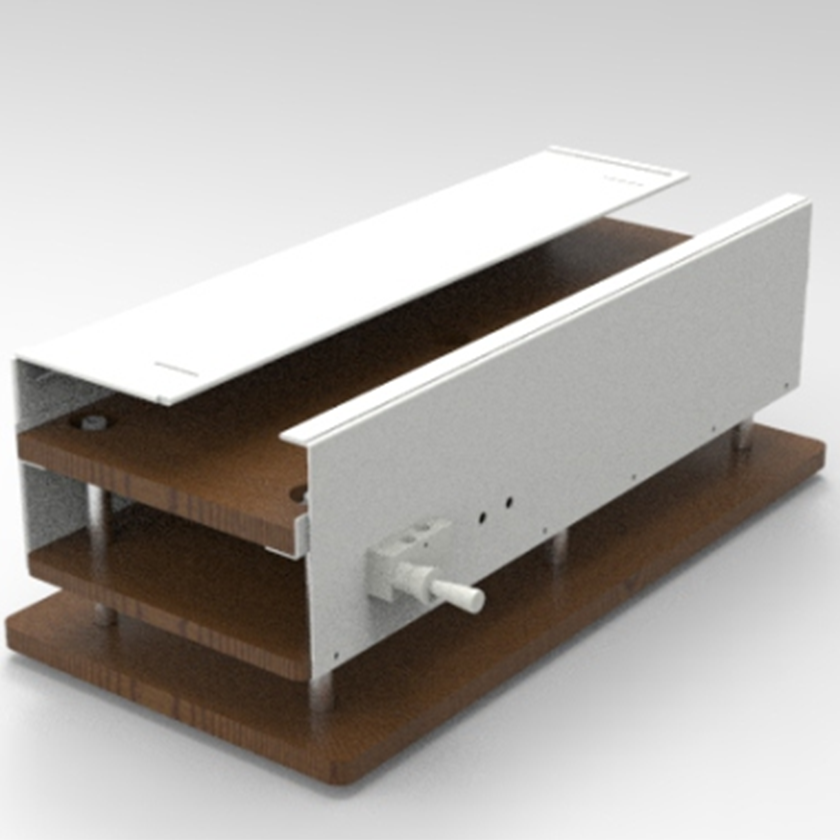

Each device is equipped with a clamping fixture, which greatly increases production capacity ;

Pneumatic manual valve to open the clip, easy and convenient to operate.

Technical parameter:

Number of channels: 128

Clamp type: four-wire method spring clamp

Clamp tension mode: automatic opening and closing

Charge and discharge current range: 0.01-2.0A/ 0.01-3.0A/0.01-5.0A

Current measurement accuracy: ± (0. 1%FS+0.1%RD)

Current resolution : 1mA

Voltage measurement range: 0. 1-5. 0V

Voltage measurement accuracy: soil (0. 1%FS + 0.1%RD)

Voltage resolution: 1 mV

Constant voltage voltage range: 3. 0-4. 5V

Constant voltage voltage accuracy: ± (0. 1%FS +0.1%RD)

Tested battery voltage: 2. 0-5. 0V

Time measurement range: 999/30000 (minutes/step)

Time measurement accuracy: ±0.1%

The maximum number of working steps : 64

Maximum number of working steps: 256

Protection measures: software protection / hardware protection (optional)

Hardware protection voltage range: 2. 5-4. 4V

Working power supply: three-phase power supply AC380V±10% 50Hz ;

Relative humidity : ≤ 90% RH

Equipment power ( maximum ) : 8 KW/10KW

Dimensions : 2045*1000*1800MM

New Xinhui Automation was founded in 2005, currently has two production bases in Huizhou and Jiangsu, and can achieve an annual output of 1500 sets of high-end intelligent equipment for lithium batteries.

New Xinhui Automation integrates R&D, design, manufacturing, sales and service of lithium battery automation production equipment, and has created a full line of production equipment and module PACK automatic production line of lithium ion battery series such as cylinder cel l, pouch cell and square cell.

In recent years, New Xinhui Automation has passed ISO9001 quality management system, national high-tech enterprise, Guangdong Province specialized and special new small and medium-sized enterprise, specialized and special new small giant enterprise certification. Up to now, New Xinhui Automation has more than 100 authorized patents and software copyright.

Committed to becoming the world's outstanding lithium-ion intelligent manufacturing equipment supplier, New Xinhui Automation always adhere to the "customer first, win-win cooperation" business philosophy, adhere to technological innovation, constantly improve product quality, improve customer service quality, help customers improve quality, reduce cost and increase efficiency, empower the global new energy intelligent manufacturing.
