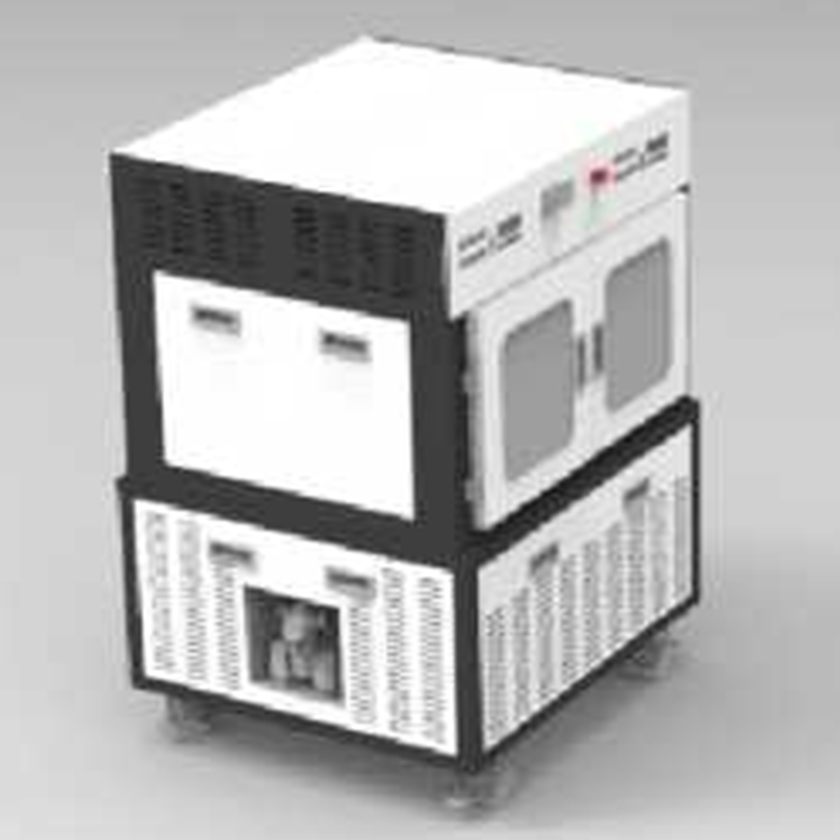

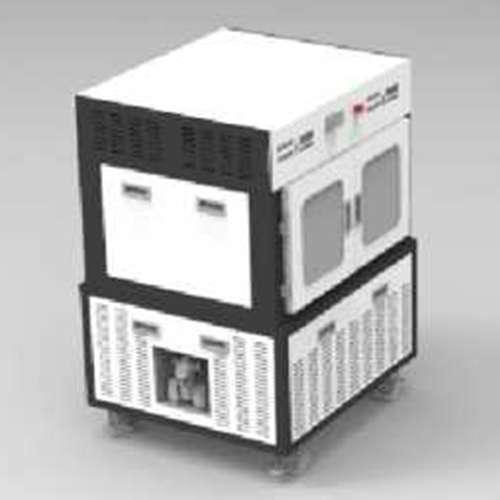

H064R Polymer Lithium Battery Volume Separation into Experimental Equipment

Equipment features:

Each channel of the equipment has a completely independent constant current stabilized power supply which is independent of each other;

The equipment has the function of data power-off protection function, and can continue to run at the power-off place when the call is made;

The clamps open and close automatically, without manual adjustment of the clamps;

Automatically adjust charging current, discharging current, charging and discharging voltage, easy to use;

The patented invention technology with independent intellectual property rights is specially designed and manufactured for the separation and formation of soft-packed square lithium-ion batteries;

Microelectronic module manufacturing, strong versatility and easy maintenance;

Communication method: RS-485 ;

Baud rate: 57.6kbit.

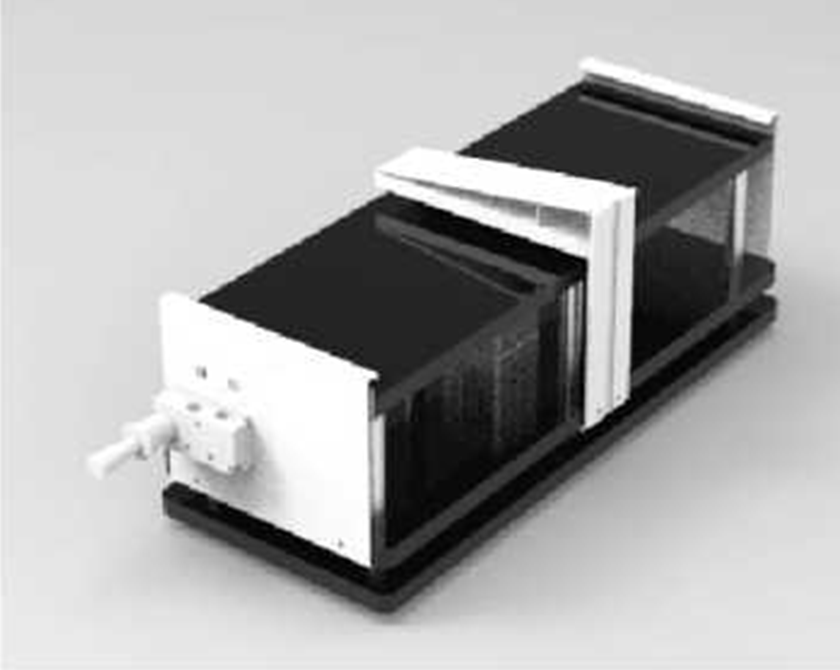

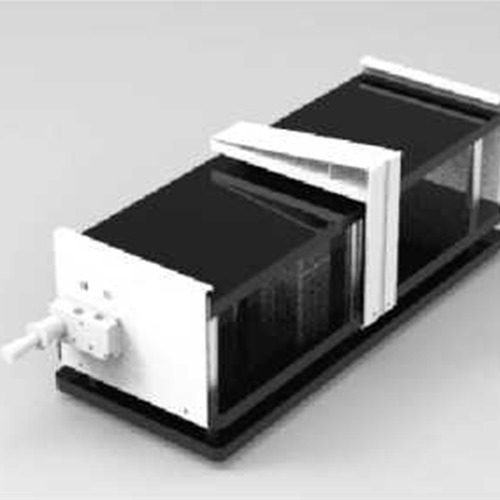

Each equipment is equipped with an open-clamp fixture to greatly increases production capacity ;

Pneumatic manual valve to open the clip, easy and convenient to operate.

Technical parameter:

Number of channels: 64

Clamp type: four-wire method spring clamp

Clamp tension mode: automatic opening and closing

Charge and discharge current range: 5A ( 1A , 2A , 3A , 4A , 5A can be freely selected)

Current measurement accuracy: ± (0. 1%FS+0.1%RD)

Current resolution : 1mA

Voltage measurement range: 0. 1-5. 0V

Voltage measurement accuracy: soil (0. 1%FS + 0.1%RD)

Voltage resolution: 1 mV

Constant voltage voltage range: 3. 0-4. 5V

Constant voltage voltage accuracy: ± (0. 1%FS +0.1%RD)

Tested battery voltage: 2. 0-5. 0V

Time measurement range: 999/30000 (minutes/step)

Time measurement accuracy: ±0.1%

The maximum number of working steps : 64

Maximum number of working steps: 256

Protection measures: software protection / hardware protection (optional)

Hardware protection voltage range: 2. 5-4. 4V

Working power supply: three-phase power supply AC380V±10% 50Hz ;

Relative humidity : ≤ 90% RH

Equipment power ( maximum ) : 1KW

Dimensions : 1000*900*1350MM
