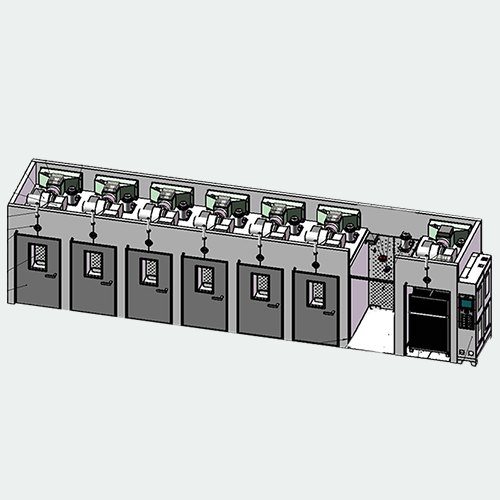

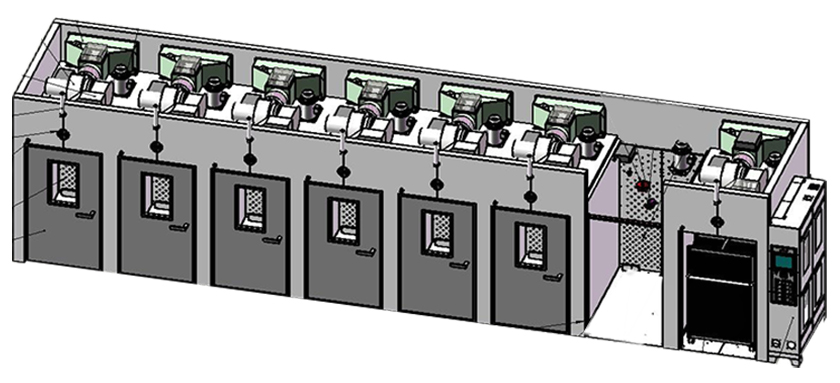

High Temperature Aging Room

The product is suitable for high temperature aging of batteries, with constant temperature aging, network communication monitoring functions, built-in explosion-proof lighting, smoke alarm, explosion-proof self-pressure relief device, smoke alarm system and other safety functions, each studio can bake 2 cars of batteries at the same time (one The car can hold 25600pcs of batteries).

Equipment advantages:

1. Unique temperature control technology: hot air circulation in the working room is adopted, the air is supplied from the bottom and the air is returned from the top, and the cavity can reach ±3°C.

2. Built-in smoke alarm, the signal can be interconnected with the alarm system in the building, and the power supply of the studio can be automatically cut off when an alarm occurs.

3. Explosion-proof and pressure relief: Install an automatic exhaust and pressure relief device, which can be used for heat dissipation and exhaust, and can also be opened for pressure relief when the internal temperature is high or high pressure, controlled by the system signal.

4. Communication interconnection: The device provides an open interface, supports RS485 or modbuss communication protocol, and realizes network monitoring of the aging room's running dynamics.

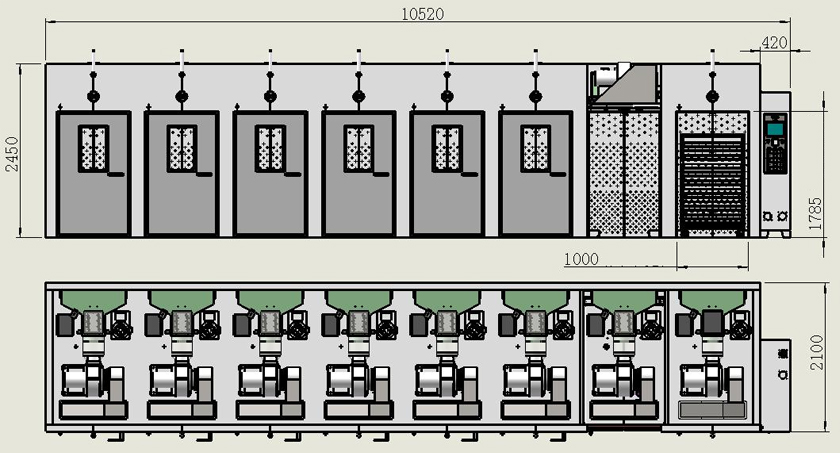

                 Dimensions: one drag eight sets (depth 2100mm * width 10520mm * height 2450mm)

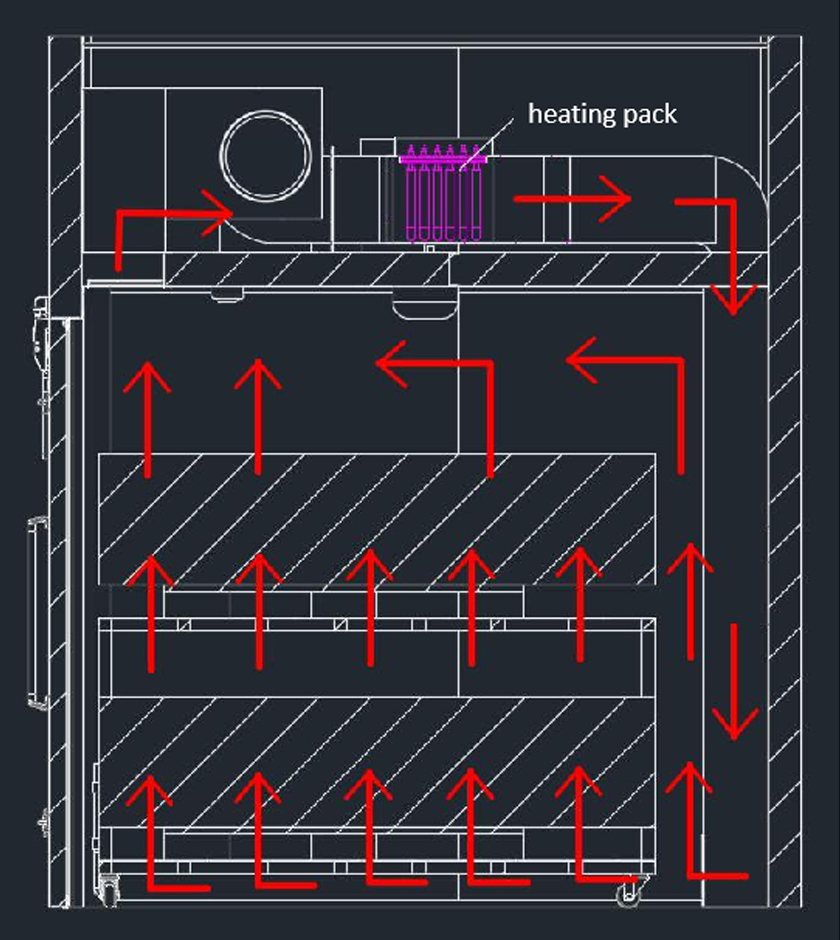

                                              Schematic diagram of indoor ventilation

New Xinhui Automation was founded in 2005, currently has two production bases in Huizhou and Jiangsu, and can achieve an annual output of 1500 sets of high-end intelligent equipment for lithium batteries.

New Xinhui Automation integrates R&D, design, manufacturing, sales and service of lithium battery automation production equipment, and has created a full line of production equipment and module PACK automatic production line of lithium ion battery series such as cylinder cel l, pouch cell and square cell.

In recent years, New Xinhui Automation has passed ISO9001 quality management system, national high-tech enterprise, Guangdong Province specialized and special new small and medium-sized enterprise, specialized and special new small giant enterprise certification. Up to now, New Xinhui Automation has more than 100 authorized patents and software copyright.

Committed to becoming the world's outstanding lithium-ion intelligent manufacturing equipment supplier, New Xinhui Automation always adhere to the "customer first, win-win cooperation" business philosophy, adhere to technological innovation, constantly improve product quality, improve customer service quality, help customers improve quality, reduce cost and increase efficiency, empower the global new energy intelligent manufacturing.
