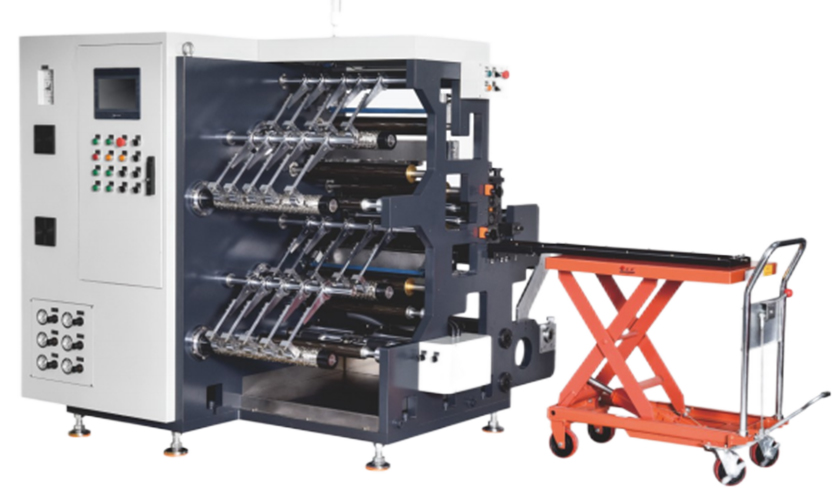

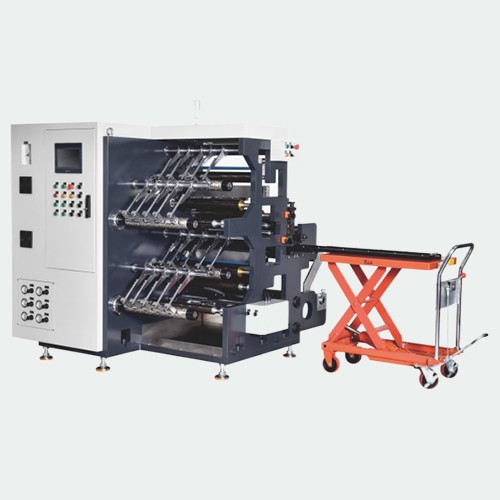

Fully Automatic Slitting Machine (FT-550)

It adopts four-axis single-air path low-tension slip shaft winding, which has the advantage of narrow sheet winding, and the narrowest cutting width of the electrode sheet is 3mm.

Two-axis single-air path low-tension slip shaft winding is adopted, and the narrowest slitting width of the electrode sheet is 6mm.

Full servo motor drive control, equipped with precision planetary reducer, low noise, good stability, and stable operation.

The knife holder is compatible with the blade knife and the fixed roller knife for slitting. The general performance is good, economical and practical.

Unwinding adopts full-closed-loop tension control, with stable and reliable performance, and winding adopts taper tension control, which makes winding more stable.

The operation is simple and convenient by adopting stepless speed regulation control.

It adopts the servo clamp roller to pull the edge material device, which has stable controllability.

Equipped with a full-drive roller brush dust removal device, the dust removal effect has obvious advantages.

The frame wall panel adopts the overall vertical panel design, which has high precision and good stability, and the assembly accuracy is guaranteed by processing accuracy.

Equipped with a hole detection sensor to prevent the breakage of the cutting process caused by the detection hole of incoming and unloading materials.

It has the automatic cleaning function of roller brush dust removal to effectively clean the brush dust.

CCD detection and cutting machine: adopts CCD vision system and labeling mechanism. Detection of surface defects, statistical data, and labeling of defective electrode sheets. Adopt MES standard interface. (optional)
