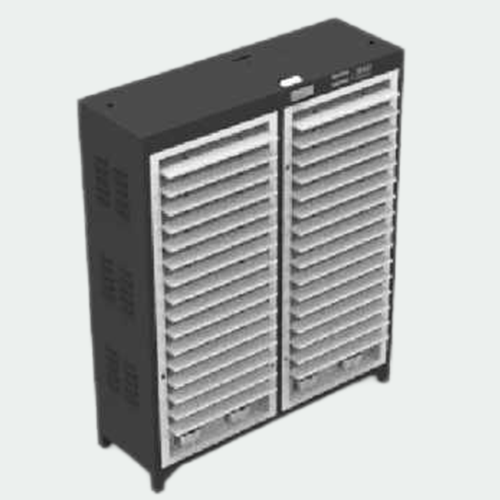

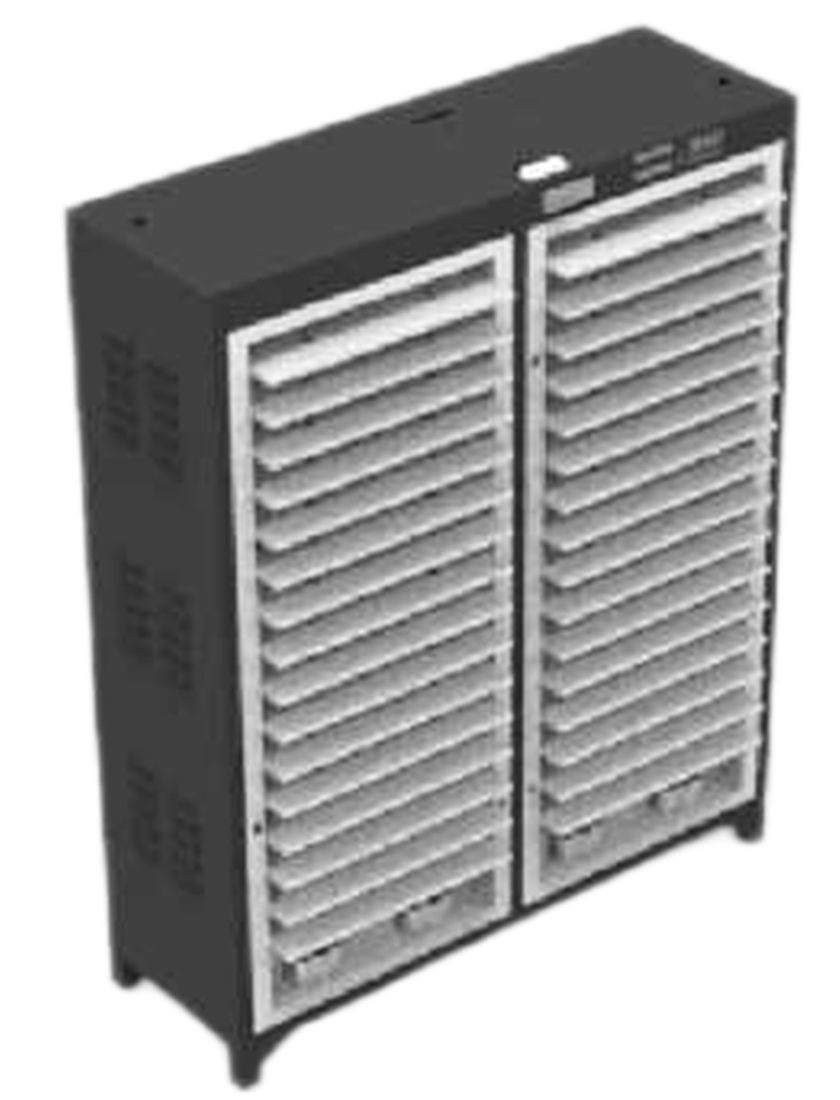

H256F Polymer Lithium Battery Capacity Separation Formation Equipment

Equipment features:

The patented invention technology with independent intellectual property rights is specially designed and manufactured for the separate capacity of soft-packed square lithium batteries;

Each channel of the equipment has a completely independent constant current regulated power supply, and the self-contained circuit does not affect each other;

The equipment has the function of data power-off protection, and can continue to operate at the power-off place when the call is made;

The clamps open and close automatically, without manual adjustment of the clamps;

Automatically adjust charging current, discharging current, constant voltage, easy to use;

Communication method: RS-485 ;

Baud rate: 57.6kbit.

Technical parameter:

Number of channels: 256

Clamp type: four-wire method spring clamp

Clamp tension mode: automatic opening and closing

Charge and discharge current range: 0.01-2.0A/ 0.01-3.0A/0.01-5.0A

Current measurement accuracy: ± (0. 1%FS+0.1%RD)

Current resolution : 1mA

Voltage measurement range: 0. 1-5. 0V

Voltage measurement accuracy: soil (0. 1%FS + 0.1%RD)

Voltage resolution: 1 mV

Constant voltage voltage range: 3. 0-4. 5V

Constant voltage voltage accuracy: ± (0. 1%FS +0.1%RD)

Tested battery voltage: 2. 0-5. 0V

Time measurement range: 999/30000 (minutes/step)

Time measurement accuracy: ±0.1%

The maximum number of working steps : 64

Maximum number of working steps: 256

Protection measures: software protection / hardware protection (optional)

Hardware protection voltage range: 2. 5-4. 4V

Working power supply: three-phase power supply AC380V±10% 50Hz ;

Relative humidity : ≤ 90% RH

Equipment power ( maximum ) : 8KW/10KW

Dimensions : 1500*600*1880MM
