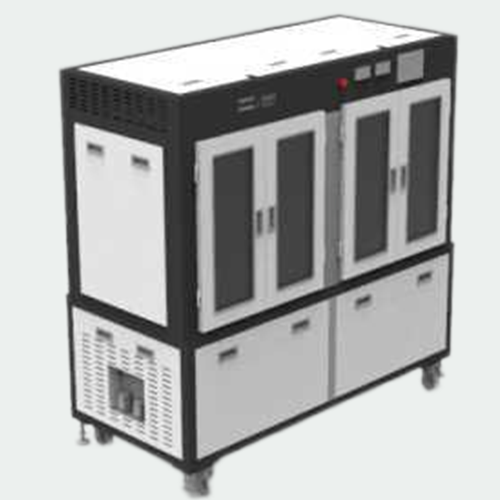

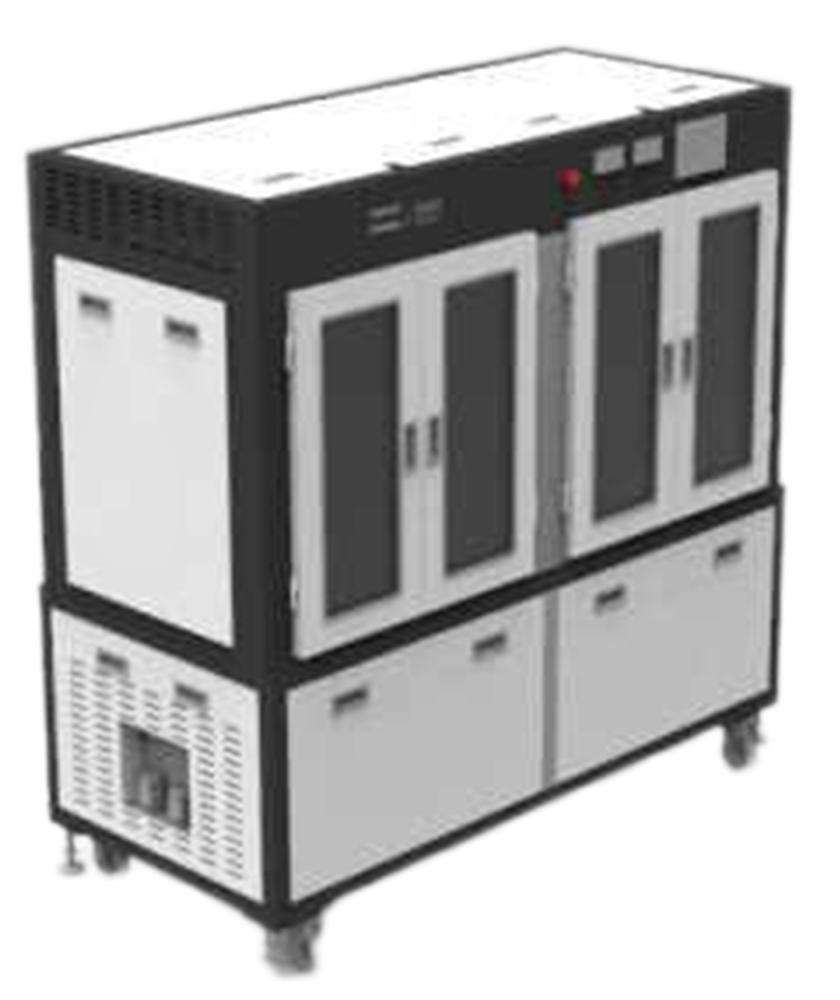

H512R Polymer Lithium Battery Heating And Pressurization Composition And Storage Integrated Cabinet

Equipment features:

512 channels are single-point independent, each channel has a completely independent constant current regulated power supply, and the self-contained loop does not affect each other ;

Equipment has the function of data power-off protection, and can continue to operate at the power-off place when the call is made;

The clamps open and close automatically, without manual adjustment of the clamps;

Automatically adjust charging current, discharging current, constant voltage, easy to use;

Microelectronic module manufacturing, strong versatility and easy maintenance;

Communication method: RS-485 ;

Baud rate: 57. 6kbit

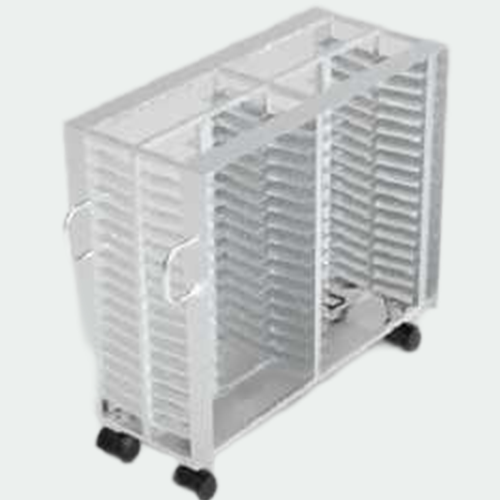

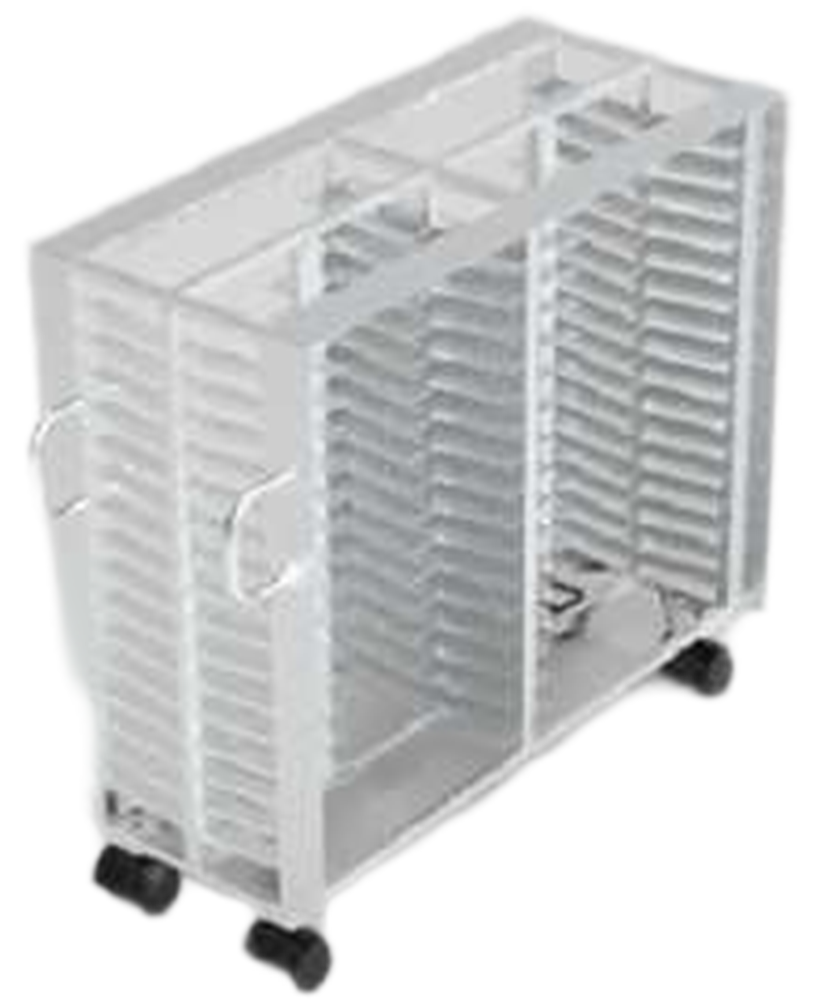

Each device is equipped with two trolleys, the body is simple and light;

Double armrests and four universal brake wheels make your operation easier and more efficient.

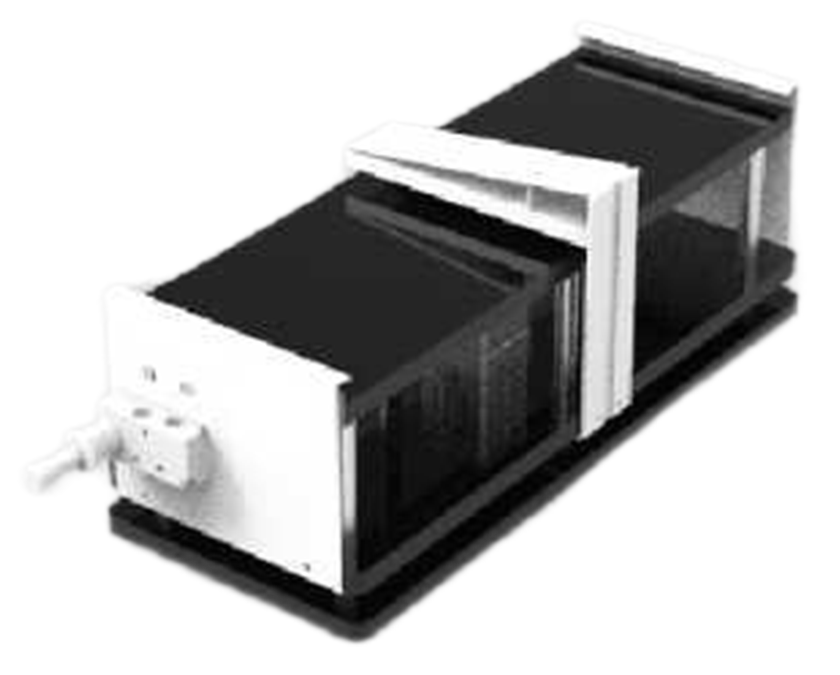

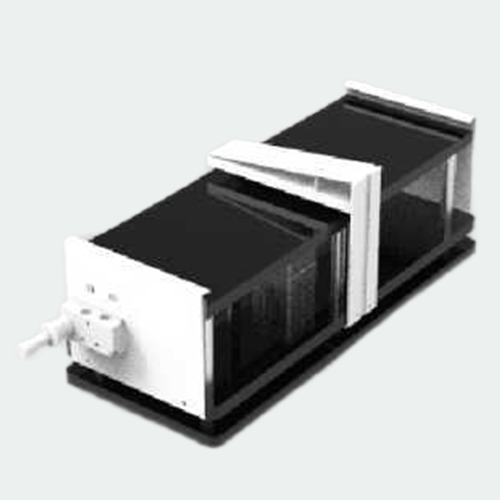

Each device is equipped with a clamping fixture, which greatly increases production capacity ;

Pneumatic manual valve to open the clip, easy and convenient to operate.

Technical Parameter:

Number of channels: 512

Clamp type: four-wire method spring clamp

Clamp tension mode: automatic opening and closing

Charge and discharge current range: 0.01-2.0A/ 0.01-3.0A

Current measurement accuracy: ± (0. 1%FS+0.1%RD)

Current resolution : 1mA

Voltage measurement range: 0. 1-5. 0V

Voltage measurement accuracy: soil (0. 1%FS + 0.1%RD)

Voltage resolution: 1 mV

Constant voltage voltage range: 3. 0-4. 5V

Constant voltage voltage accuracy: ± (0. 1%FS +0.1%RD)

Tested battery voltage: 2. 0-5. 0V

Time measurement range: 999/30000 (minutes/step)

Time measurement accuracy: ±0.1%

The maximum number of working steps : 64

Maximum number of working steps: 256

System protection function: overvoltage/undervoltage/overcurrent/undercurrent/overcapacity/overtemperature/smoke protection

Working air source: above 0.6MP

Hardware protection voltage range: 2. 5-4. 4V

Working power supply: three-phase power supply AC380V±10% 50Hz ;

Relative humidity : ≤ 90% RH

Equipment power (maximum): 8KW/10KW

Dimensions: 1900*900*1980MM
