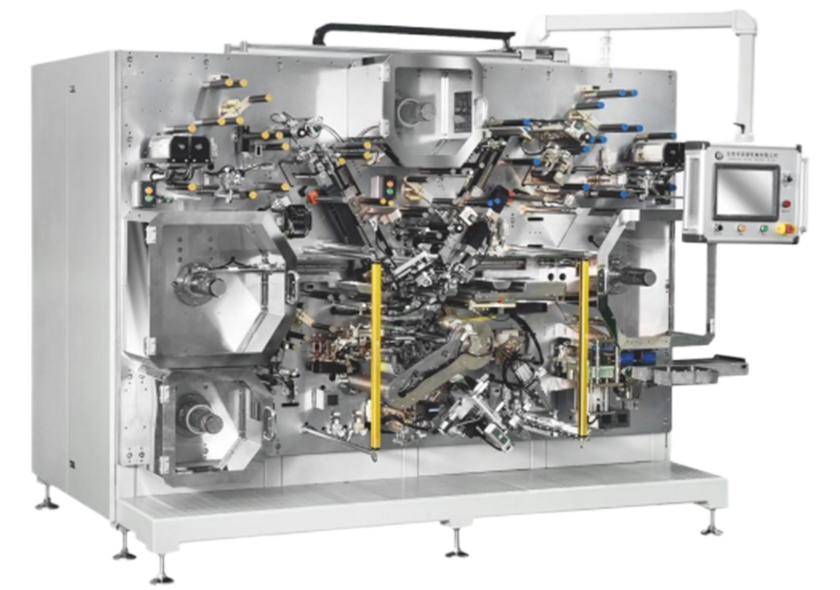

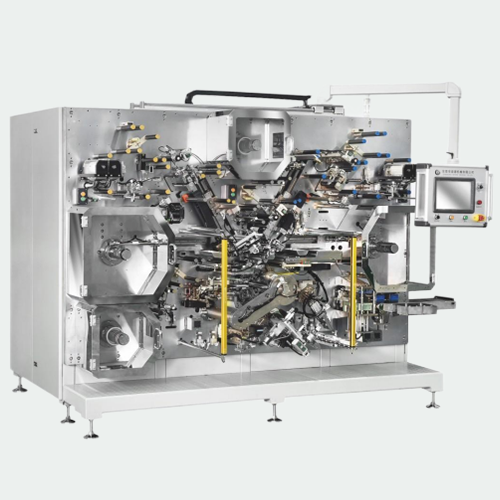

Automatic Winding Machine (110-180A)

Three-coil needle structure with direct drive transmission.

Constant speed winding 500-800mm/s.

The tension of electrode sheets and separators is controlled by servo motor closed-loop, the minimum tension of separators is 80g, the minimum tension of electrode sheets is 180g, and the tension fluctuation is ±3%.

Adding a first-stage clamping deflection correction device close to the winding needle plays a key role in winding alignment control.

CCD online alignment detection system, detection accuracy: 0.05mm.

Electrode sheets finishing or separators finishing can be realized.

The motor directly drives the winding shaft for winding, the winding speed is stable, the tension fluctuation is small, and the winding tension is effectively controlled.

It has the function of single roll without separator for bad pole piece.

The electrode sheet and separator roller are made of carbon fiber.

Cathode and anode sheets can realize the function of cutting two knives.

It can realize the automatic film insertion function of winding.
