Liquid Injection Machine

This machine is suitable for the mass production process of automatic vacuum injection of EV pouch cell. Weighing after liquid injection, vacuum static, vacuum packaging, weighing after packaging, insulation test, material frame scanning code, battery automatic tray discharge and other functions.

The equipment has the function of automatic identification and selection of defective products, including poor weighing before liquid injection, poor code scanning, poor code scanning after liquid injection, poor liquid injection, poor short circuit test, poor insulation test, etc.

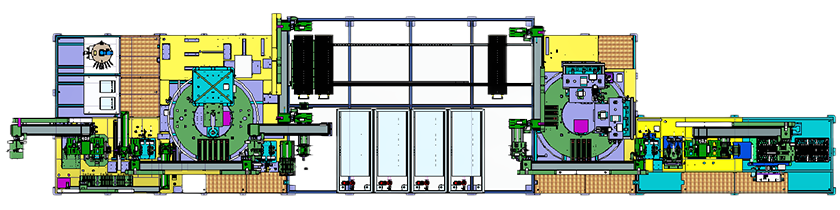

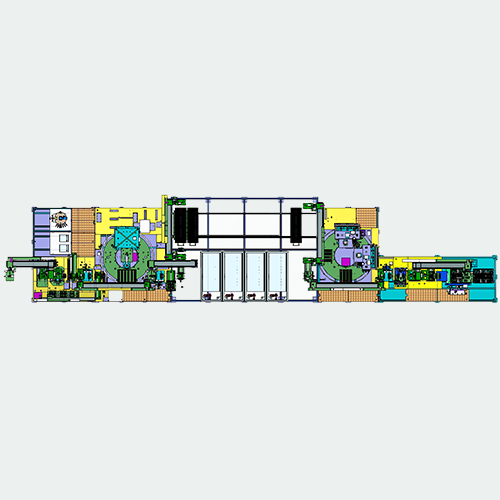

It adopts a double turntable structure, which is easy to maintain and change, and adopts a modular design.

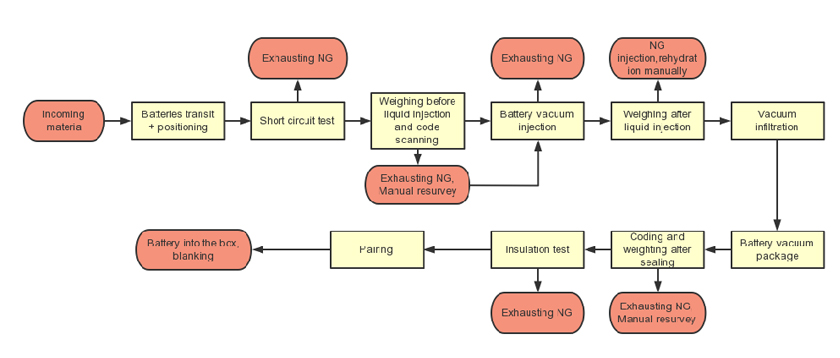

Equipment Process:

Device Parameters:

Equipment capacity: 10PPM;

Product yield: 99.5%;

Equipment failure rate: <2.0%;

The equipment adopts a double turntable structure, and the machine structure layout is simple and reasonable;

Injection volume accuracy: when the injection volume is ≤100g, the injection accuracy is ±1g; when the injection volume is ≥100g and less than 250g, the injection accuracy is ±0.8%; within the accuracy range, the injection volume CPK≧1.67;

Vacuum seal accuracy ±0.015mm, sealing width accuracy ≤±0.5mm, head temperature: adjustable from room temperature to 250°C, head working temperature 180°C±5°C;

Airtightness of the vacuum chamber: pump to -95Kpa, hold the pressure for 1min, and require a pressure drop of ≤5Kpa;

Total weight of equipment: about 18.0 tons.
