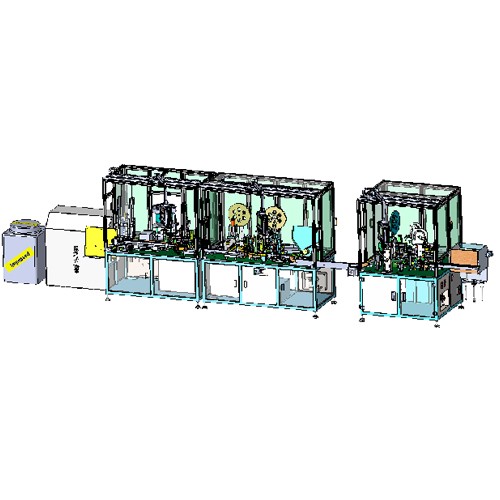

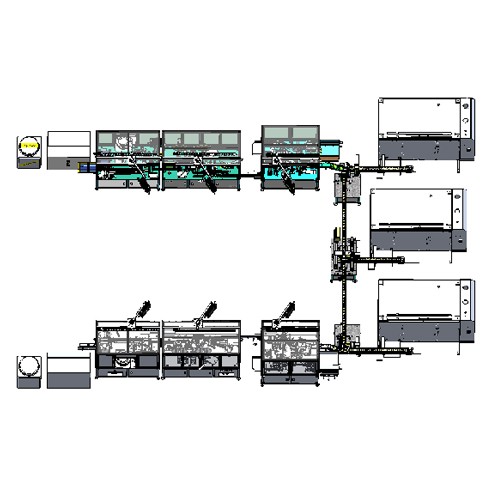

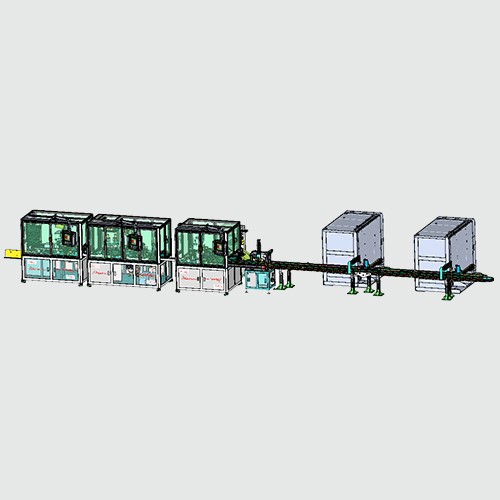

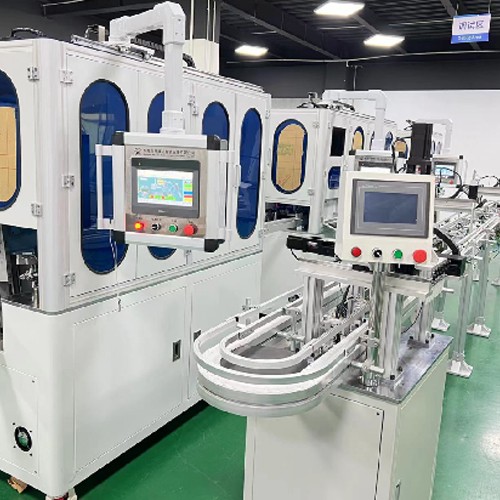

18650 fully automatic double station winding assembly line

18650 fully automatic double station winding assembly line:

(Including winding connection line, shelling machine, end spotweld/rolling groove integrated machine, laser welding cap machine)

The assembly line is suitable for 18650 cylindrical lithium-ion battery cell automatic winding machine feeding, shelling, end spotweld, adding the top pad, CCD detection, short circuit detection, rolling groove, laser welding cap, and box collection. A series of actions are automatically completed by the machine. The operator only needs to complete the finished box receiving and loading actions. It has the characteristics of smooth movement and stable performance.

Basic parameters:

Power supply: single-phase AC220V±5% 50HZ 5KW;

Compressed air source: ≥0.6MPa;

Efficiency: 60-70PCS/min

The equipment has no potential safety hazards, and has safety alarm devices and signs;

Machine size: (length×width×height) 14000*2550*1800mm (excluding winding machine)

Equipment color: international warm gray

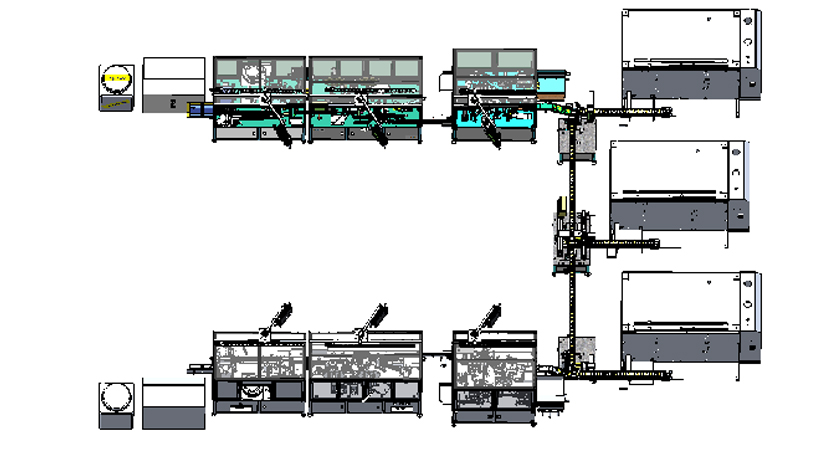

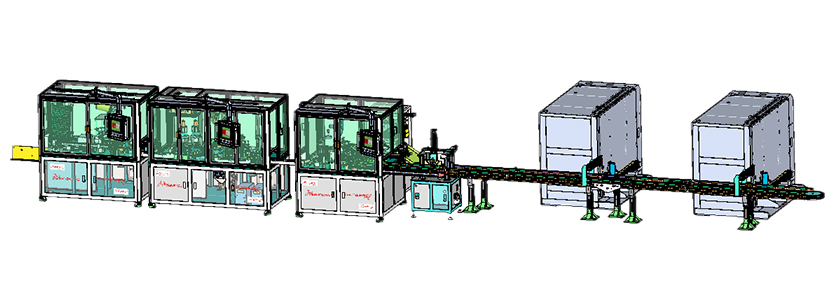

18650 fully automatic single station winding assembly line

(Including winding connection line, shelling machine, end spotweld/ rolling groove integrated machine, laser welding cap machine)

18650 fully automatic single station winding assembly line:

(Including winding connection line, shelling machine, point bottom rolling groove integrated machine, laser welding cap machine)

The automatic assembly line is suitable for 18650 cylindrical lithium-ion battery cells , which are automatically connected to the winding machine for feeding, shelling, pointing the bottom, adding top pads, measuring short circuits, rolling grooves, laser welding caps, and receiving boxes . The special automation equipment is composed of The machine automatically completes a series of actions. The operator only needs to complete the finished box receiving and loading actions . It has the characteristics of smooth movement and stable performance .

Basic parameters:

Power supply: single-phase AC220V±5% 50HZ 5KW;

Compressed air source: ≥0.6MPa;

Efficiency: 70-80PCS/min

The equipment has no potential safety hazards, and has safety alarm devices and signs;

Machine size: (L×W×H) 6500*6400*1800mm (excluding winding machine) Equipment color: international warm gray

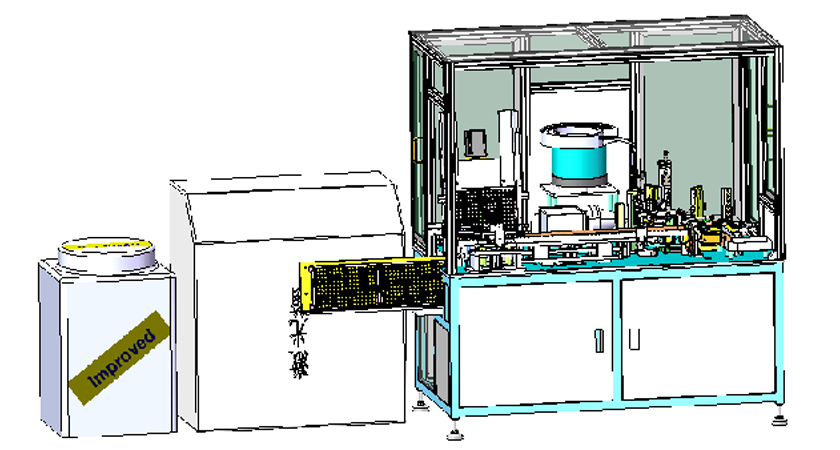

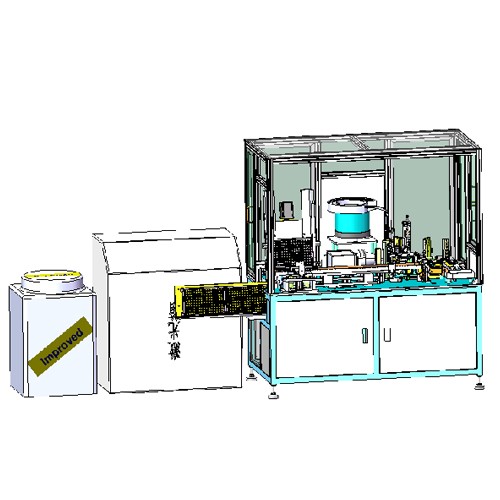

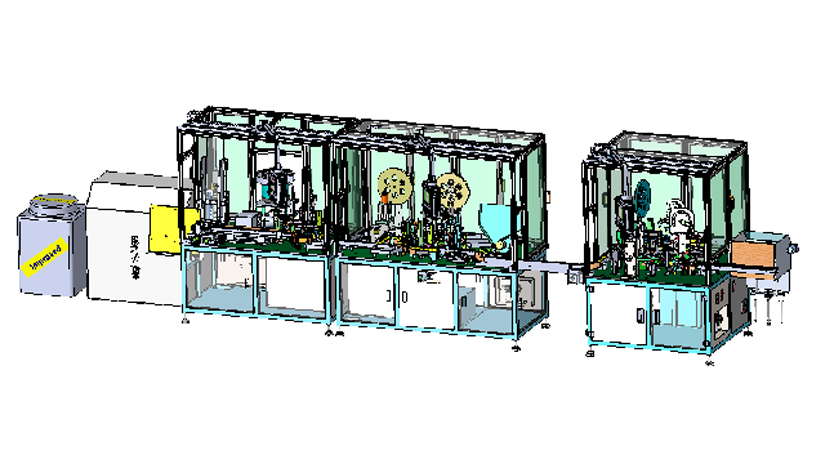

18650 single station assembly:

(Including shelling machine, point bottom rolling groove machine, laser welding cap machine)

This automatic assembly line is suitable for 18650 cylindrical lithium - ion battery cells that automatically enter the shell, end spotweld, add top gasket, measure the short circuit, roll the groove, laser weld the cap, and collect the box . The operator needs to complete the battery loading and the action of the cell charging, and the rest of the process is automatically completed by the machine . It has the characteristics of smooth movement, stable performance and high process efficiency .

Dimensions of the whole line : 6200 mmx 1100 mmx 1800 mm (length x width x height)

Efficiency : 40-45PCS/Min

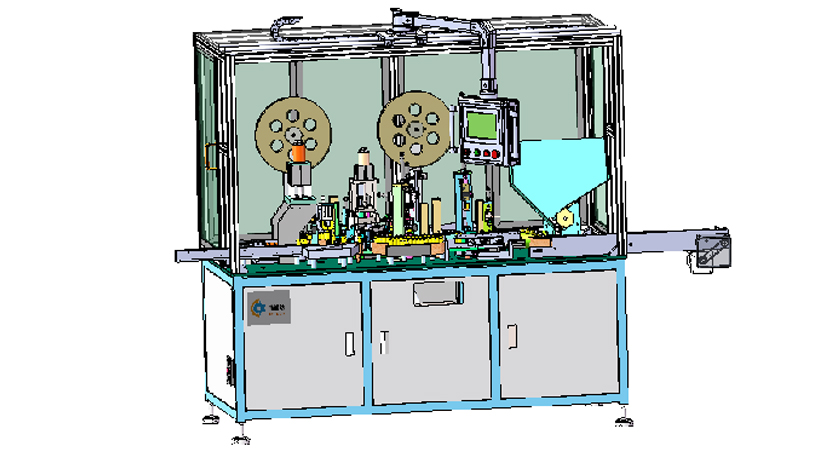

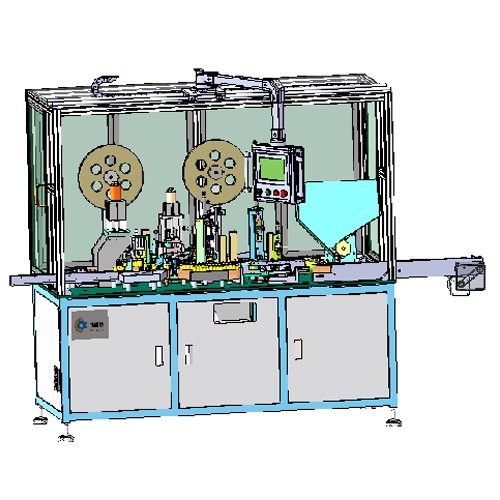

18650-18500 single and double tab into shell machine:

Automation equipment for 18650-18500 steel shell cylindrical lithium-ion battery cells and bottom gaskets to be automatically inserted into the shell . Tab correction, surface pad punching, surface pad inspection, tab folding, shell insertion, and material discharge, etc. It has the characteristics of smooth movement, stable performance and high process efficiency.

Basic parameters:

Power supply: single-phase AC220V±5% 50HZ 3KW;

Compressed air source: ≥0.6MPa;

Vacuum negative pressure: -0.050MPa or less;

Machine size: 1500 mm *1100 mm *1800mm (length x width x height)

The equipment has no potential safety hazards , and has safety alarm devices and signs;

Equipment color: international warm gray

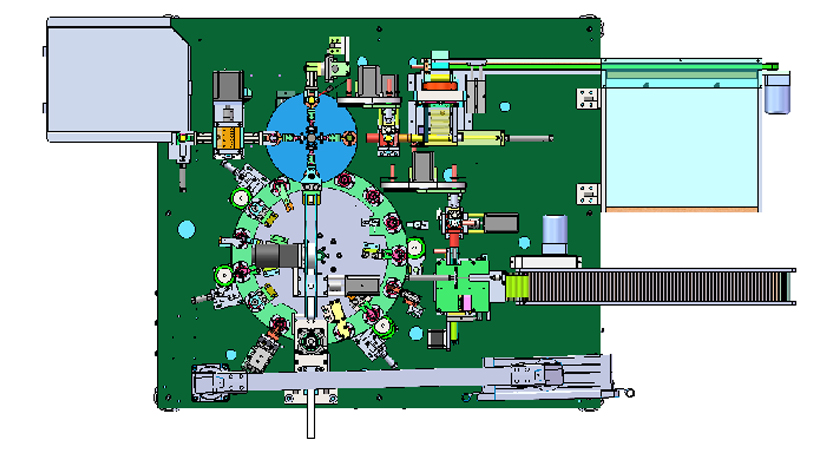

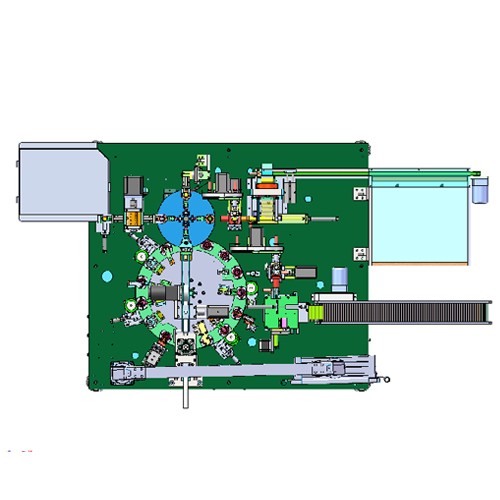

18650 end spotweld/rolling-groove in one machine:

18650 Point Bottom Rolling Groove Integrated Machine is an automatic equipment for 18650 cylindrical lithium-ion batteries, which integrates bottom point, tension test, surface pad, short circuit test and roll grooving. The structure design is simple and the performance is stable.

Technical parameter:

Power supply: AC 380V±10%/50Hz, power ≤6KW

Working air source: 0.5~0.6Mpa

Efficiency: ≥ 2400PPM

Dimensions: 2120 mm × 820 mm × 1800mm (length × width × height)

Equipment color: international warm gray

18650 laser welding top cover machine:

18650 laser top cover welding machine is an automatic equipment for 18650 cylindrical lithium-ion battery top cover welding and tensile force measurement. The equipment can be produced in-line with the front-end point-and-bottom all-in-one machine . The structure design is simple and the performance is stable.

Technical parameter:

Working power supply: AC 220V±10%/50Hz, power: ≤5KW

Working air source: 0.5~0.6Mpa

Efficiency: ≥ 2400PPM

Equipment weight: about 300kg

Dimensions: 1100 mm × 1050 mm × 1800mm (length × width × height)

Equipment color: international warm gray

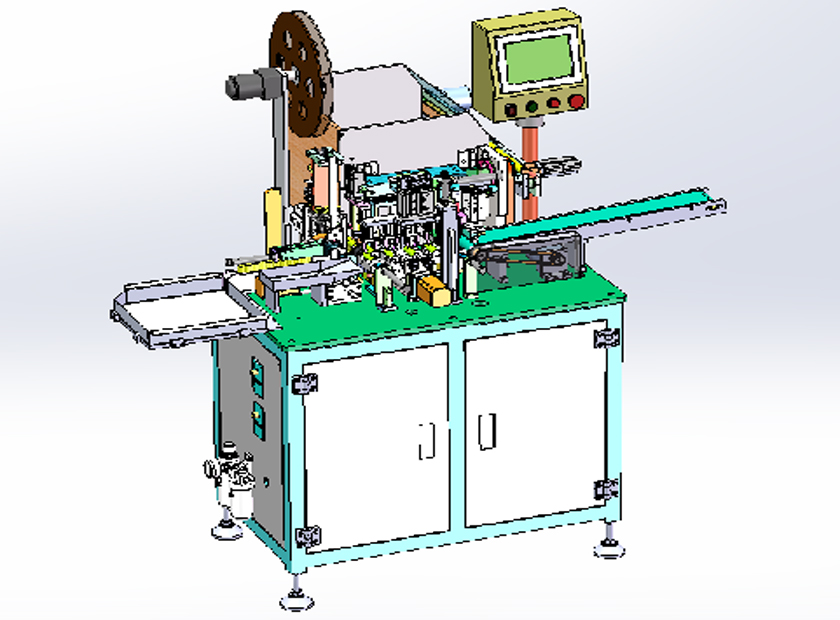

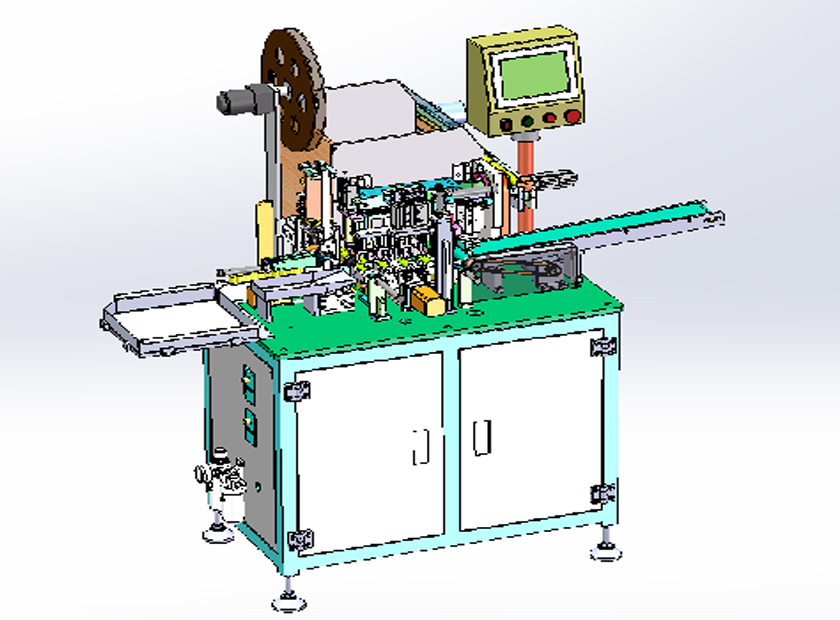

18650 single tab to shell machine:

This model is suitable for special automation equipment for 18650 cylindrical lithium-ion battery single tab cells and bottom gaskets to automatically enter the shell. The operator needs to complete the action of charging the battery and collecting the battery, and the machine automatically completes the steel shell and transfers the battery. Cell, tab correction, tab folding, bad removal, flushing the bottom gasket, putting steel shell on, putting the bottom gasket, charging the battery into the casing , discharging, etc. It has the characteristics of smooth movement and stable performance .

Basic parameters:

Power supply: single-phase AC220V±5% 50HZ 2KW;

Compressed air source: ≥0.6MPa;

Vacuum negative pressure : -0.050MPa or less;

Efficiency: 2400PPM/H

Machine size: 1600 mm *1050 mm *1500mm (length x width x height)

The equipment has no potential safety hazards , and has safety alarm devices and signs;

Equipment color: international warm gray

18500 single tab to shell machine:

This model is suitable for special automation equipment for 18500 steel shell cylindrical lithium-ion battery cells and bottom gaskets to automatically enter the shell. The operator needs to complete the actions of charging and collecting cells, and the machine automatically completes the steel shell and transfers the cells. , tab correction, tab folding, bad removal, flush bottom gasket, cover steel shell, put bottom gasket, battery into the shell, discharge and other actions . It has the characteristics of smooth movement, stable performance and high process efficiency.

Basic parameters:

Power supply: single-phase AC220V±5% 50HZ 2KW;

Compressed air source: ≥0.6MPa;

Vacuum negative pressure : -0.050MPa or less;

Efficiency: 2400PPM/H

Machine size: 1612 mm *1050 mm *1500mm (length x width x height)

The equipment has no potential safety hazards , and has safety alarm devices and signs;

Equipment color: international warm gray

New Xinhui Automation was founded in 2005, currently has two production bases in Huizhou and Jiangsu, and can achieve an annual output of 1500 sets of high-end intelligent equipment for lithium batteries.

New Xinhui Automation integrates R&D, design, manufacturing, sales and service of lithium battery automation production equipment, and has created a full line of production equipment and module PACK automatic production line of lithium ion battery series such as cylinder cel l, pouch cell and square cell.

In recent years, New Xinhui Automation has passed ISO9001 quality management system, national high-tech enterprise, Guangdong Province specialized and special new small and medium-sized enterprise, specialized and special new small giant enterprise certification. Up to now, New Xinhui Automation has more than 100 authorized patents and software copyright.

Committed to becoming the world's outstanding lithium-ion intelligent manufacturing equipment supplier, New Xinhui Automation always adhere to the "customer first, win-win cooperation" business philosophy, adhere to technological innovation, constantly improve product quality, improve customer service quality, help customers improve quality, reduce cost and increase efficiency, empower the global new energy intelligent manufacturing.
