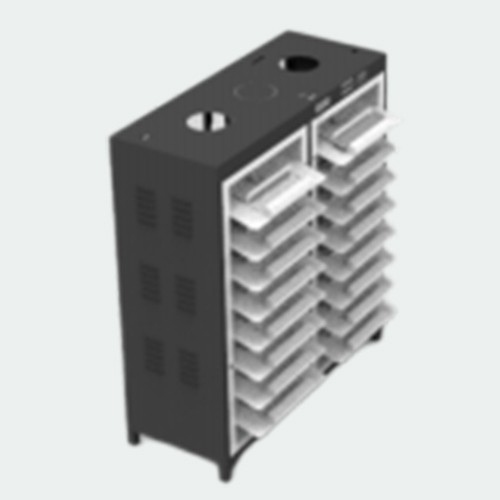

18650 Lithium Battery Capacity Separation Test Equipment

Each channel of this device has a completely independent constant current regulated power supply, and the self-contained circuit does not affect each other.

Device has a data power-off protection function, and the incoming call can continue to run at the power-off place.

The clamps open and close automatically, without manual adjustment of the clamps.

Automatically adjust charging current, discharging current, constant voltage, easy to use.

Microelectronic module manufacturing, strong versatility and easy maintenance.

Communication method: RS-485, baud rate: 57. 6kbit.



Technical Parameters:

Number of channels: 512

Clamp type: four-wire method spring clamp

Fixture opening and closing method: automatic opening and closing

Charge and discharge current range: 0. 01-1. 0A/0. 01-2. 0A/0. 01-3.

Current measurement accuracy: ± (0. 1%FS + O. 1%RD)

Current resolution: 1mA

Voltage measurement range: 0. 1-5. 0V

Voltage measurement accuracy: soil (0. 1%FS + O. 1%RD)

Voltage resolution: 1mV

Constant voltage voltage range: 3. 0-4. 5V

Constant voltage voltage accuracy: ± (0. 1%FS + O. 1%RD)

Tested battery voltage: 2. 0-5. 0V

Time measurement range: 999/30000 (minutes/step)

Time measurement accuracy: ±0.1%

Maximum number of working steps: 64

Maximum number of working steps: 256

System protection function: overvoltage/undervoltage/overcurrent/undercurrent/overcapacity/overtemperature/smoke protection

Working air source: above 0.6MP

Hardware protection voltage range: 2. 5-4. 4V

Working power supply: three-phase power supply AC380V±10% 50Hz; relative humidity≤90% RH

Equipment power (maximum): 8KW/10KW

Dimensions: 1500*600*1880MM

New Xinhui Automation was founded in 2005, currently has two production bases in Huizhou and Jiangsu, and can achieve an annual output of 1500 sets of high-end intelligent equipment for lithium batteries.

New Xinhui Automation integrates R&D, design, manufacturing, sales and service of lithium battery automation production equipment, and has created a full line of production equipment and module PACK automatic production line of lithium ion battery series such as cylinder cel l, pouch cell and square cell.

In recent years, New Xinhui Automation has passed ISO9001 quality management system, national high-tech enterprise, Guangdong Province specialized and special new small and medium-sized enterprise, specialized and special new small giant enterprise certification. Up to now, New Xinhui Automation has more than 100 authorized patents and software copyright.

Committed to becoming the world's outstanding lithium-ion intelligent manufacturing equipment supplier, New Xinhui Automation always adhere to the "customer first, win-win cooperation" business philosophy, adhere to technological innovation, constantly improve product quality, improve customer service quality, help customers improve quality, reduce cost and increase efficiency, empower the global new energy intelligent manufacturing.
