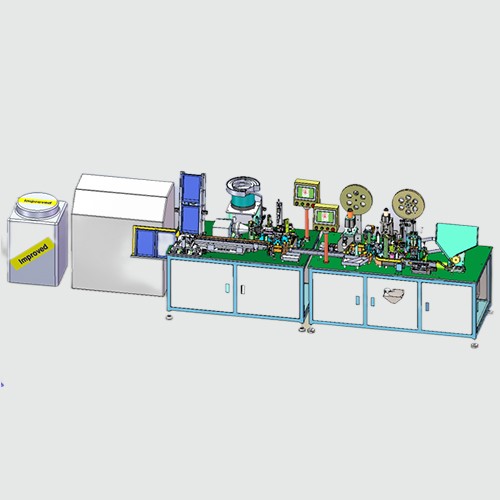

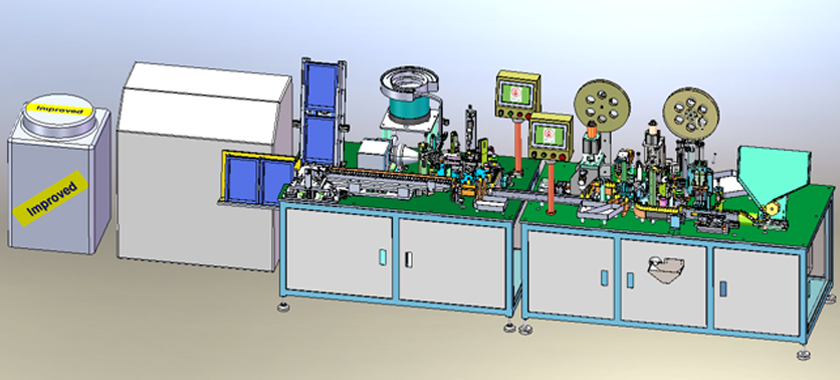

14500 single station automatic assembly line

This assembly line is suitable for 14500 cylindrical lithium-ion battery cell bottom point, top gasket, short circuit test, rolling groove, laser welding cap, and shelling. The operator needs to complete the actions of charging and collecting cells. The rest of the process is automatically completed by the machine, which has the characteristics of smooth movement, stable performance and high process efficiency.

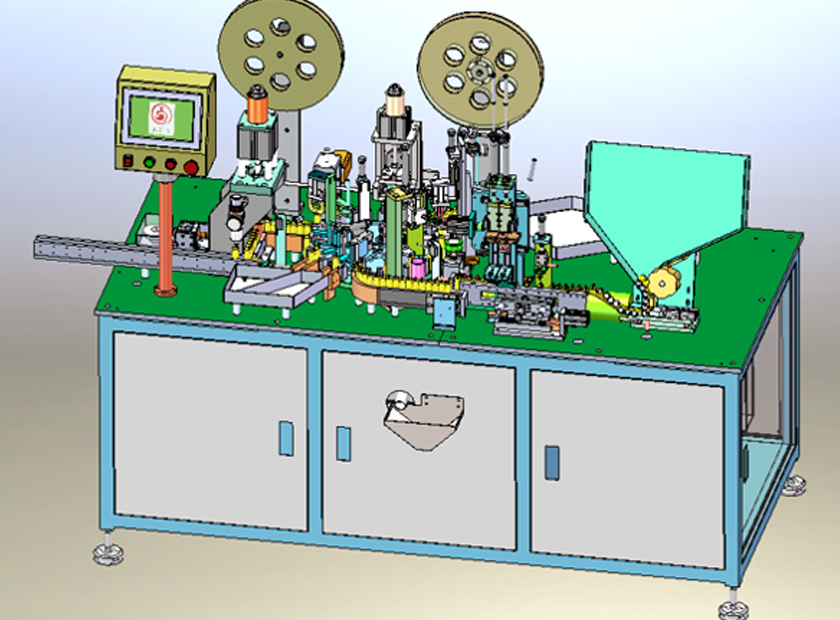

Laser welding cap machine:

14500 Cylindrical lithium-ion battery laser cap welding machine is a special automation equipment for cylindrical battery cap welding, tension measurement and automatic box collection. It can be produced on-line with the front-end point-and-bottom all-in-one machine. The structure design is simple and the performance is stable.

The device can complete the parameter setting through the touch screen, and the PLC automatically completes the following functions: docking with the point-and-bottom all-in-one machine → the cylinder pushes the battery to the assembly line → the battery enters the turntable → tab correction → tab straightening → tab correction → Vibrating plate feeding caps → laser welding caps → cap tension testing → finished product discharge → box collection → (defective product discharge) → complete. The operating parameters can be set independently according to the actual requirements of customers.

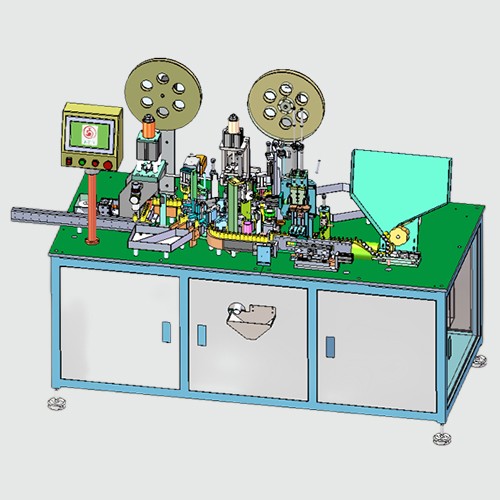

Laser welding cap machine:

14500 Cylindrical lithium-ion battery laser cap welding machine is a special automation equipment for cylindrical battery cap welding, tension measurement and automatic box collection. It can be produced on-line with the front-end point-and-bottom all-in-one machine. The structure design is simple and the performance is stable.

The device can complete the parameter setting through the touch screen, and the PLC automatically completes the following functions: docking with the point-and-bottom all-in-one machine → the cylinder pushes the battery to the assembly line → the battery enters the turntable → tab correction → tab straightening → tab correction → Vibrating plate feeding caps → laser welding caps → cap tension testing → finished product discharge → box collection → (defective product discharge) → complete. The operating parameters can be set independently according to the actual requirements of customers.
